Mismatched Small Cells
Table of mismatched cells according to mapping runs conducted over July of 2010
Hank's row | Hank's col | nstbmap | rowmap | colmap | id1map | id2map | id3map | id4map | nstb | row | col | id1 | id2 | id3 | id4 | Status | |
23 | 7 | 3 | 1 | 6 | 2 | 0 | 3 | E8 | 3 | 1 | 6 | 2 | 0 | 0 | E0 | Check | |
20 | 4 | 3 | 4 | 3 | 2 | 3 | 1 | FE | 3 | 4 | 3 | 2 | 0 | 0 | E0 | Undetermined | |
20 | 5 | 3 | 4 | 4 | 2 | 0 | 2 | E2 | 3 | 4 | 4 | 2 | 0 | 3 | E2 | Check | |
18 | 3 | 3 | 6 | 2 | 2 | 3 | 1 | F4 | 3 | 6 | 2 | 2 | 0 | 0 | E0 | Undetermined | |
17 | 8 | 3 | 7 | 7 | 2 | 0 | 0 | EC | 3 | 7 | 7 | 2 | 0 | 3 | EE | Undetermined | |
14 | 8 | 3 | 10 | 7 | 2 | 3 | 2 | F2 | 3 | 10 | 7 | 2 | 3 | 2 | E0 | Check | |
14 | 12 | 3 | 10 | 11 | 2 | 3 | 3 | E2 | 3 | 10 | 11 | 2 | 1 | 2 | F0 | Undetermined | |
13 | 6 | 3 | 11 | 5 | 2 | 3 | 2 | E0 | 3 | 11 | 5 | 2 | 3 | 2 | F2 | Check | |
12 | 11 | 3 | 12 | 10 | 2 | 2 | 3 | E8 | 3 | 12 | 10 | 2 | 0 | 0 | E0 | Undetermined | |
11 | 9 | 3 | 13 | 8 | 2 | 2 | 2 | FA | 3 | 13 | 8 | 2 | 3 | 2 | F8 | Undetermined | |
10 | 11 | 3 | 14 | 10 | 2 | 2 | 3 | EC | 3 | 14 | 10 | 2 | 0 | 0 | E0 | Undetermined | |
8 | 6 | 3 | 16 | 5 | 2 | 1 | 3 | F8 | 3 | 16 | 5 | 2 | 1 | 2 | FA | Undetermined | |
8 | 11 | 3 | 16 | 10 | 2 | 1 | 3 | E0 | 3 | 16 | 10 | 2 | 1 | 3 | E4 | Check | |
8 | 12 | 3 | 16 | 11 | 2 | 1 | 3 | E4 | 3 | 16 | 11 | 2 | 1 | 3 | E0 | Check | |
24 | 6 | 4 | 0 | 5 | 1 | 3 | 3 | FA | 4 | 0 | 5 | 1 | 3 | 0 | F8 | Undetermined | |
24 | 8 | 4 | 0 | 7 | 1 | 3 | 3 | F2 | 4 | 0 | 7 | 1 | 3 | 0 | F2 | Undetermined | |
9 | 7 | 4 | 15 | 6 | 1 | 1 | 1 | EE | 4 | 15 | 6 | 1 | 0 | 0 | E0 | Undetermined | |
7 | 1 | 4 | 17 | 0 | 1 | 0 | 3 | E0 | 4 | 17 | 0 | 1 | 0 | 0 | E0 | Undetermined | |
5 | 2 | 4 | 19 | 1 | 1 | 0 | 3 | F2 | 4 | 19 | 1 | 1 | 0 | 0 | E0 | Undetermined | |
5 | 7 | 4 | 19 | 6 | 1 | 2 | 3 | E8 | 4 | 19 | 6 | 1 | 2 | 0 | E0 | Undetermined |
Hank's rows begin at 1 from the bottom, our rows begin at 0 from the top. Hank's columns begin at 1 and our columns begin at 0, both count from the inside moving out. The variables marked with "map" as a suffix are the cell designations determined from mapping runs. The other variables are the cell designations determined by calculation. The alternating coloring scheme is to make the mismatches easier to view and does not have any meaning. Data from jgma called "Summary of runs taken for the FMS test" posted on 07-21-2010 drupal.star.bnl.gov/STAR/blog/jgma/2010/jul/21/summary-runs-taken-fms-test were used to make this spreadsheet. Data from "Summary of runs taken for the FMS test" was also used to produce a .pdf file documenting the calculated device, chip, channel and address of all the runs STAR/files/userfiles/2958/file/AddressChipChannel.pdf (channel is in red and address is in blue in this document). Status marked as "check" means the cell actually provided data and our program was able to calculate a chip, channel and address for that cell. Status marked as "undetermined" means the cell did not provide data and is most likely dead and our program was not able to accurately calculate a chip,channel and address.
These are cells from the above table that did not provide good or enough data and are either dead or have problems.
Hank's row | Hank's col | nstbmap | rowmap | colmap | id1map | id2map | id3map | id4map | nstb | row | col | id1 | id2 | id3 | id4 | Status | |
20 | 4 | 3 | 4 | 3 | 2 | 3 | 1 | FE | 3 | 4 | 3 | 2 | 0 | 0 | E0 | Undetermined | |
18 | 3 | 3 | 6 | 2 | 2 | 3 | 1 | F4 | 3 | 6 | 2 | 2 | 0 | 0 | E0 | Undetermined | |
17 | 8 | 3 | 7 | 7 | 2 | 0 | 0 | EC | 3 | 7 | 7 | 2 | 0 | 3 | EE | Undetermined | |
14 | 12 | 3 | 10 | 11 | 2 | 3 | 3 | E2 | 3 | 10 | 11 | 2 | 1 | 2 | F0 | Undetermined | |
12 | 11 | 3 | 12 | 10 | 2 | 2 | 3 | E8 | 3 | 12 | 10 | 2 | 0 | 0 | E0 | Undetermined | |
11 | 9 | 3 | 13 | 8 | 2 | 2 | 2 | FA | 3 | 13 | 8 | 2 | 3 | 2 | F8 | Undetermined | |
10 | 11 | 3 | 14 | 10 | 2 | 2 | 3 | EC | 3 | 14 | 10 | 2 | 0 | 0 | E0 | Undetermined | |
8 | 6 | 3 | 16 | 5 | 2 | 1 | 3 | F8 | 3 | 16 | 5 | 2 | 1 | 2 | FA | Undetermined | |
24 | 6 | 4 | 0 | 5 | 1 | 3 | 3 | FA | 4 | 0 | 5 | 1 | 3 | 0 | F8 | Undetermined | |
24 | 8 | 4 | 0 | 7 | 1 | 3 | 3 | F2 | 4 | 0 | 7 | 1 | 3 | 0 | F2 | Undetermined | |
9 | 7 | 4 | 15 | 6 | 1 | 1 | 1 | EE | 4 | 15 | 6 | 1 | 0 | 0 | E0 | Undetermined | |
7 | 1 | 4 | 17 | 0 | 1 | 0 | 3 | E0 | 4 | 17 | 0 | 1 | 0 | 0 | E0 | Undetermined | |
5 | 2 | 4 | 19 | 1 | 1 | 0 | 3 | F2 | 4 | 19 | 1 | 1 | 0 | 0 | E0 | Undetermined | |
5 | 7 | 4 | 19 | 6 | 1 | 2 | 3 | E8 | 4 | 19 | 6 | 1 | 2 | 0 | E0 | Undetermined |
This is the first table again with the likely dead cells removed, again the coloring scheme is just to help see and line up the data but there is no actually meaning.
Hank's row | Hank's col | nstbmap | rowmap | colmap | id1map | id2map | id3map | id4map | nstb | row | col | id1 | id2 | id3 | id4 | Status | |
23 | 7 | 3 | 1 | 6 | 2 | 0 | 3 | E8 | 3 | 1 | 6 | 2 | 0 | 0 | E0 | Check | |
20 | 5 | 3 | 4 | 4 | 2 | 0 | 2 | E2 | 3 | 4 | 4 | 2 | 0 | 3 | E2 | Check | |
14 | 8 | 3 | 10 | 7 | 2 | 3 | 2 | F2 | 3 | 10 | 7 | 2 | 3 | 2 | E0 | Check | |
13 | 6 | 3 | 11 | 5 | 2 | 3 | 2 | E0 | 3 | 11 | 5 | 2 | 3 | 2 | F2 | Check | |
8 | 11 | 3 | 16 | 10 | 2 | 1 | 3 | E0 | 3 | 16 | 10 | 2 | 1 | 3 | E4 | Check | |
8 | 12 | 3 | 16 | 11 | 2 | 1 | 3 | E4 | 3 | 16 | 11 | 2 | 1 | 3 | E0 | Check |

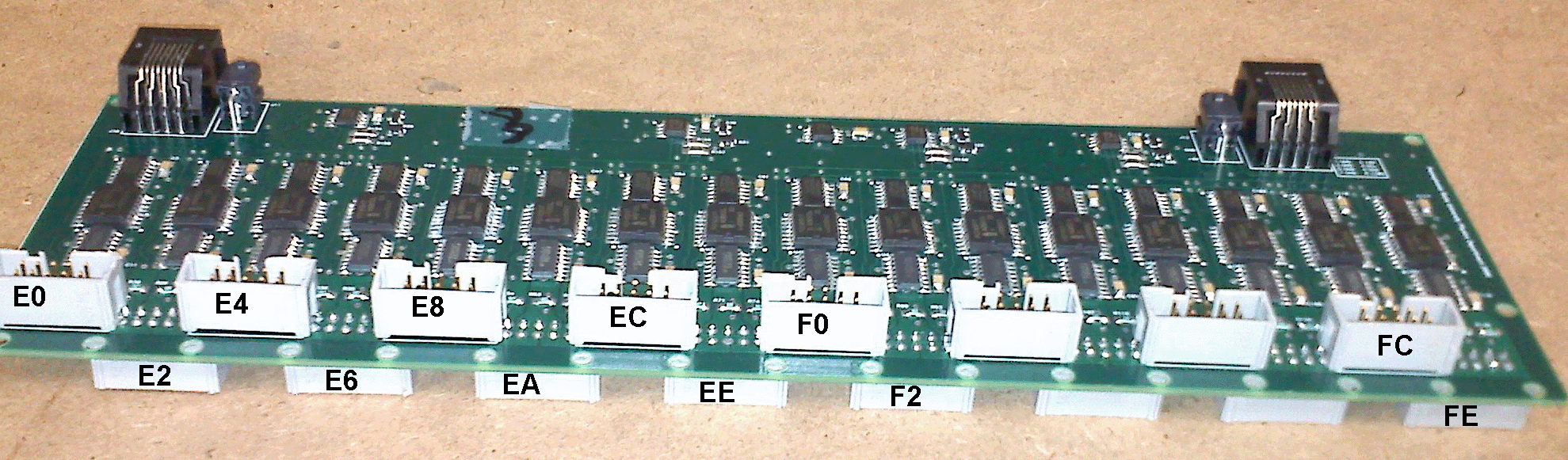

This is a Yale board that indicates one chip and channel with addresses indicated.
PSU board that indicates channel, the dial indicates the address. 0 is E0, 1 isE2, 2 is E4 etc. In this particular image the arrow is pointing to the 4 which reads E8 .
On the small cells the Yale boards are in the corners and the PSU boards are on the flat of each side.
