SHD of the Coulomb histogram

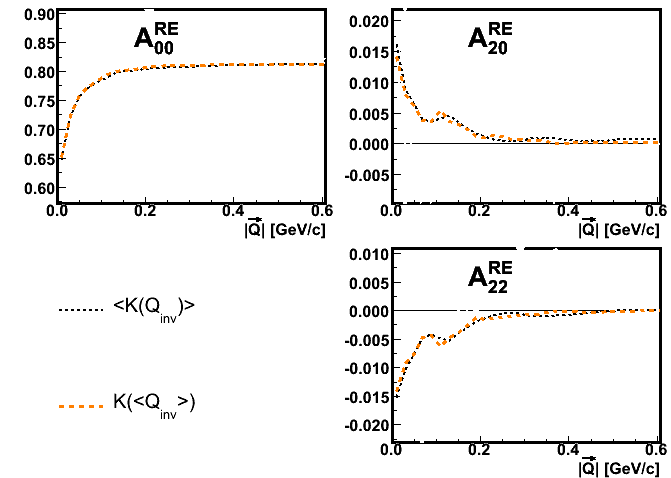

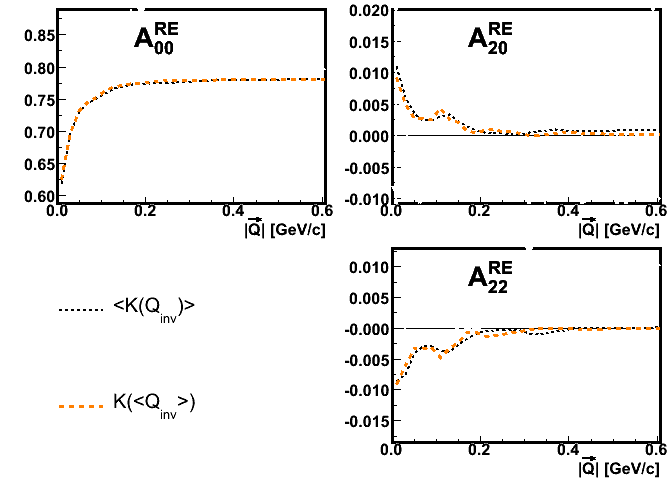

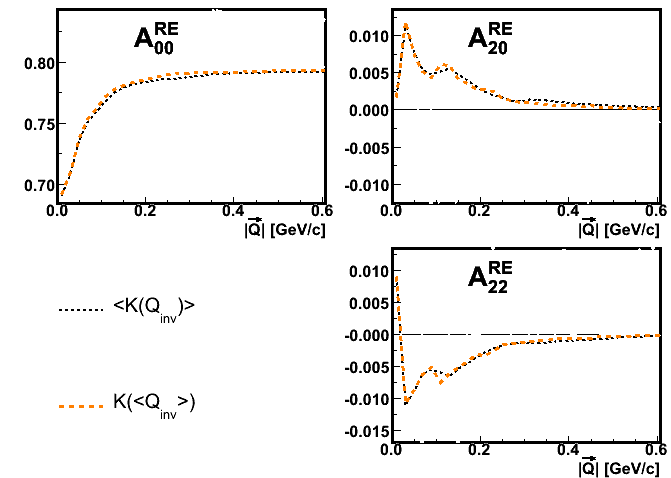

Spherical harmonic decomposition of the Coulomb histogram. Two cases plotted:
K(<Q_inv>) - squared wave function calculated for the averaged value of Qinv
<K(Qinv)> - averaged of the squared wave function calculated for each pair's Qinv.
p+p@200 GeV;
LCMS Frame
kT=[0.15,0.25] GeV/c
kT=[0.25,0.35] GeV/c
kT=[0.35,0.45] GeV/c
kT=[0.45,0.60] GeV/c

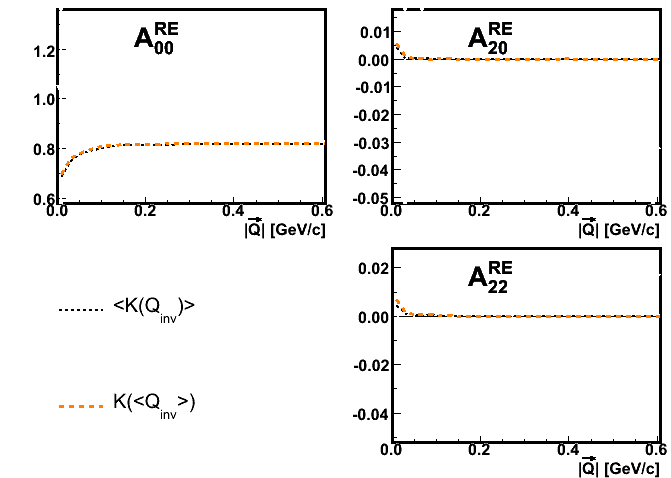

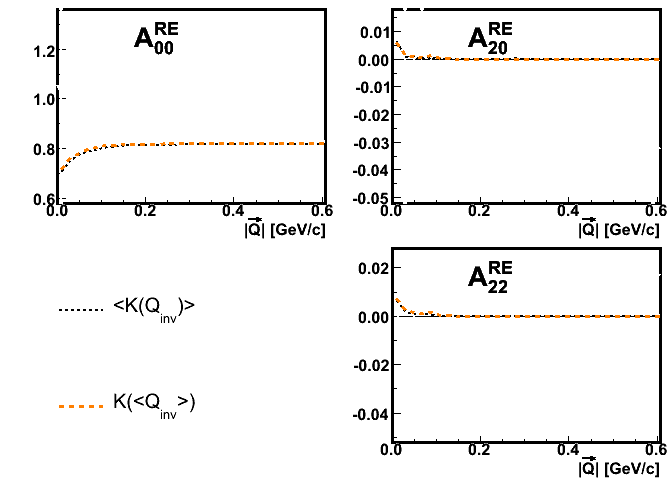

PR Frame
kT=[0.15,0.25] GeV/c
kT=[0.25,0.35] GeV/c
kT=[0.35,0.45] GeV/c
kT=[0.45,0.60] GeV/c
