Sector dependent shower shapes sorted into different preshower bins - Triple Gaussian Fits

Updated on Sun, 2011-07-10 10:32. Originally created by sdhamija on 2011-07-09 21:24.

 Transverse Shower Profile Distributions





Fitting function "[0]*(exp ( -0.5*((x-[1])/[2])**2 )+[3]*exp ( -0.5*((x-[4])/[5])**2 )+[6]*exp ( -0.5*((x-[7])/([8]*(1.0+k*(x-[7]))))**2 )"





To see the values of all the parameters for these different fits, please open the attached file shower.txt

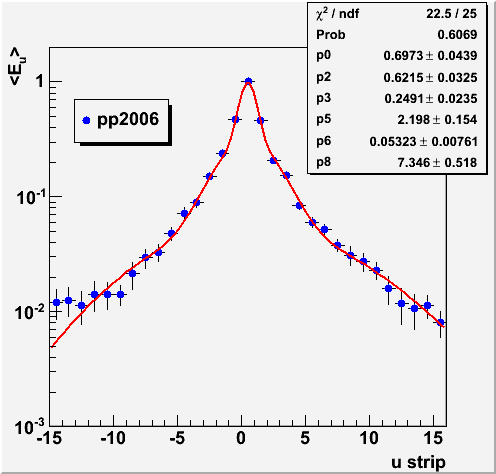

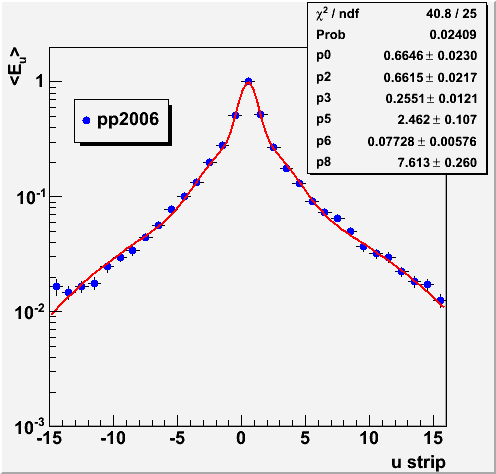

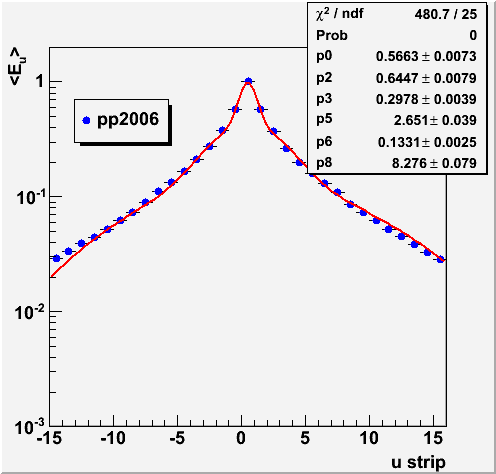

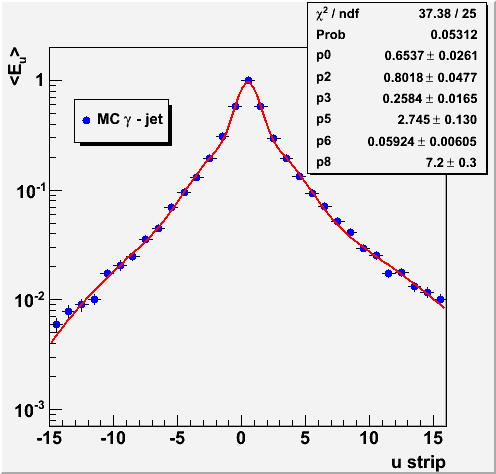

(I) Sum of Sectors 1, 4, 7 & 10 (U Plane)

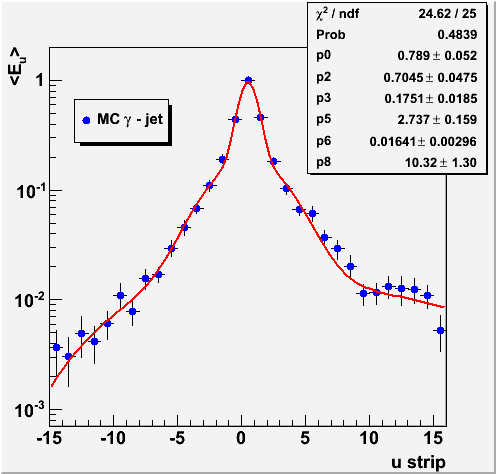

(a) Pre1 =0, Pre2 =0

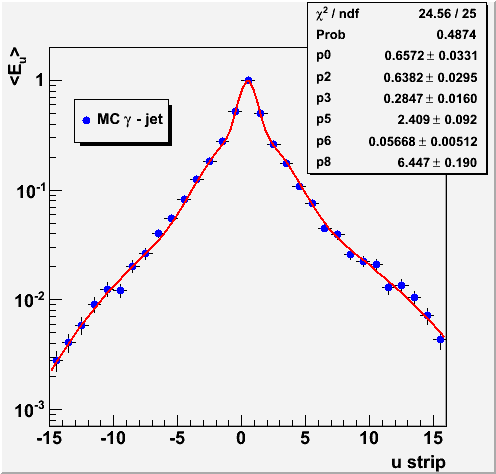

(b) Pre1 =0, Pre2 >0

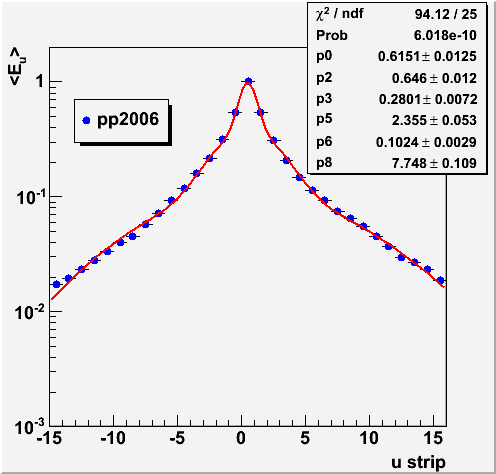

(c) 0<Pre1<4MeV

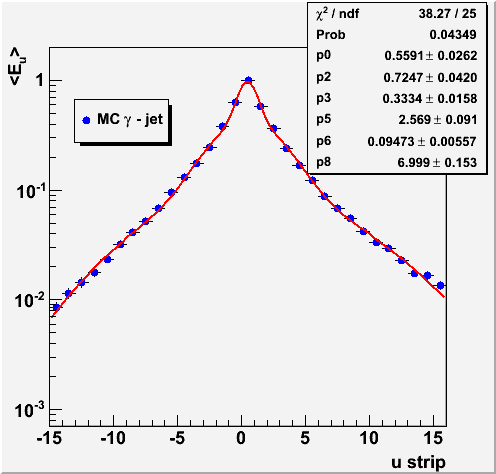

(d) Pre1>=4MeV

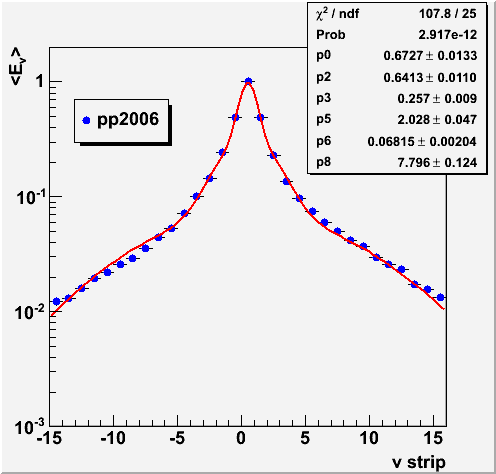

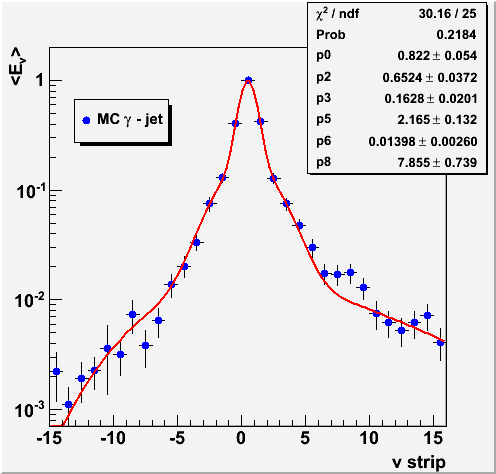

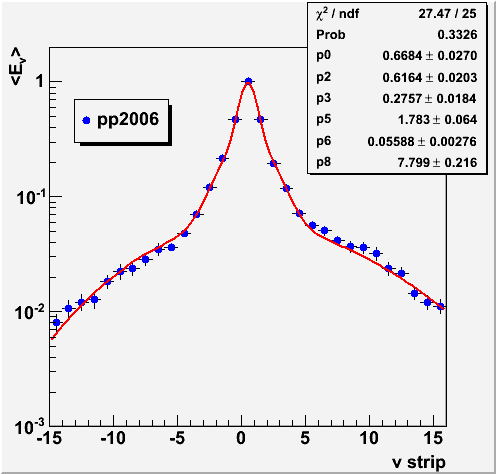

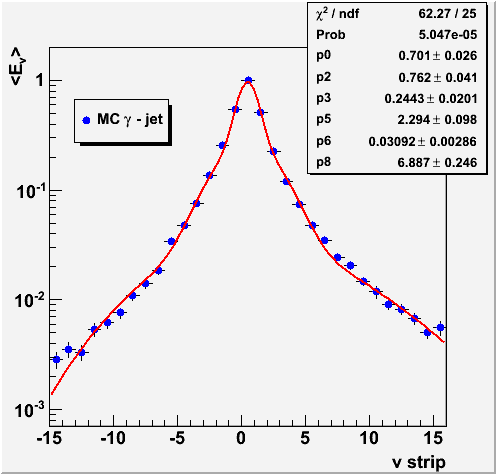

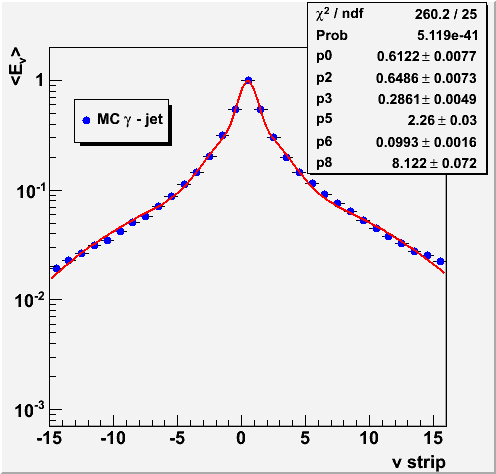

(I) Sum of Sectors 1, 4, 7 & 10 (V Plane)

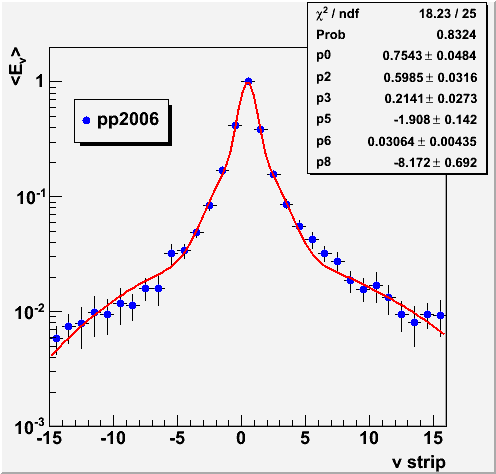

(a) Pre1 =0, Pre2 =0

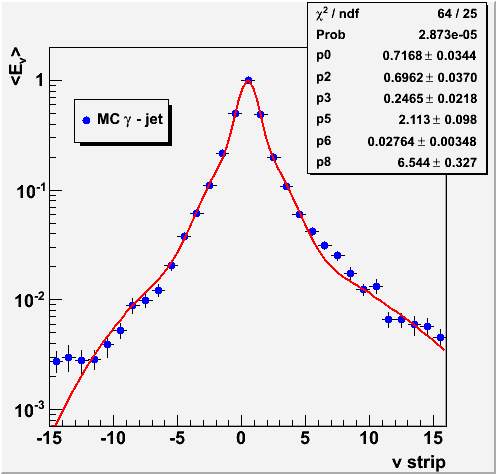

(b) Pre1 =0, Pre2 >0



(c) 0<Pre1<4MeV





(d) Pre1>=4MeV

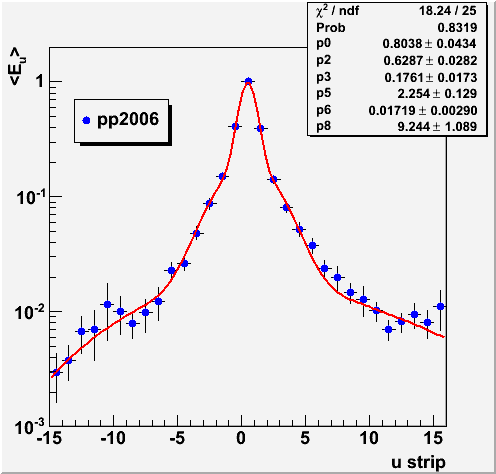

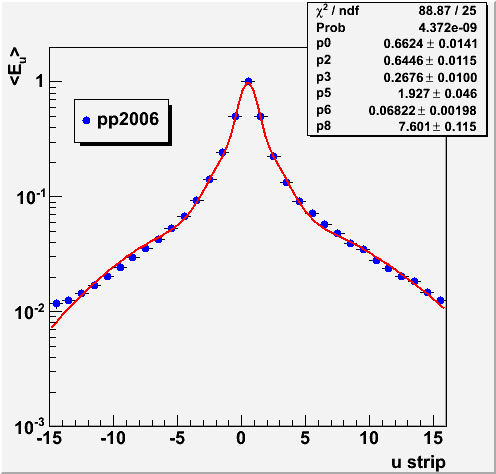

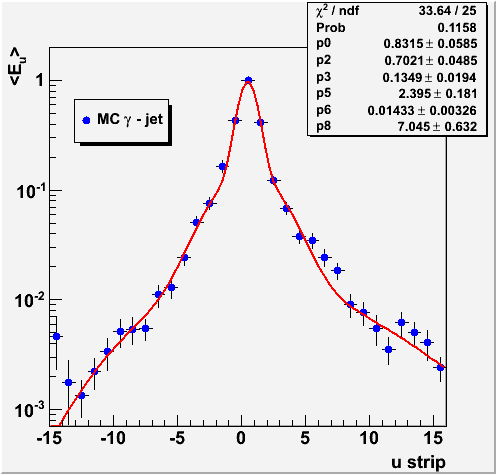

(II) Sum of Sectors 2, 5, 8 & 11 (U Plane)

(a) Pre1 =0, Pre2 =0

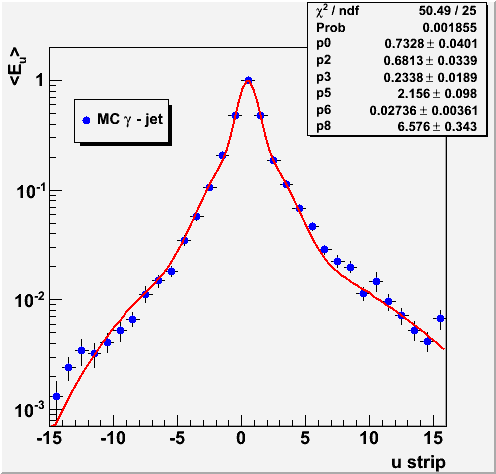

(b) Pre1 =0, Pre2 >0

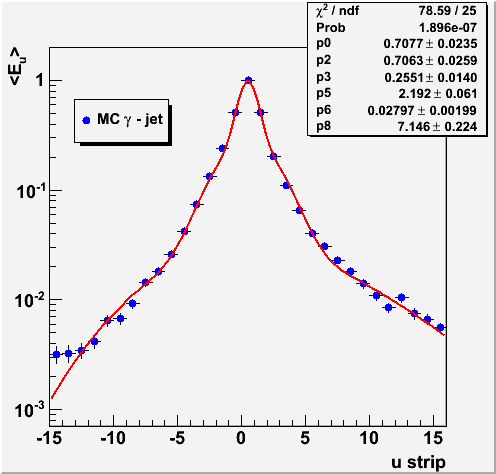

(c) 0<Pre1 < 4MeV

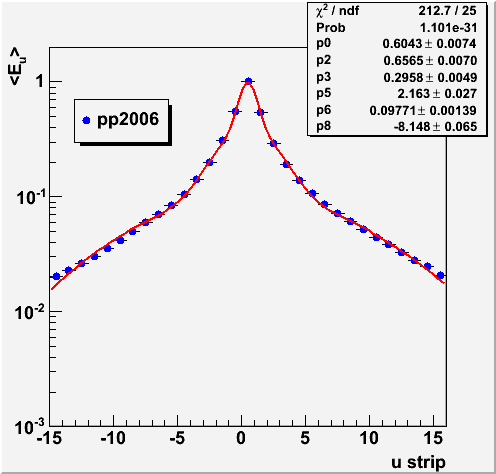

(d) Pre1 >= 4MeV

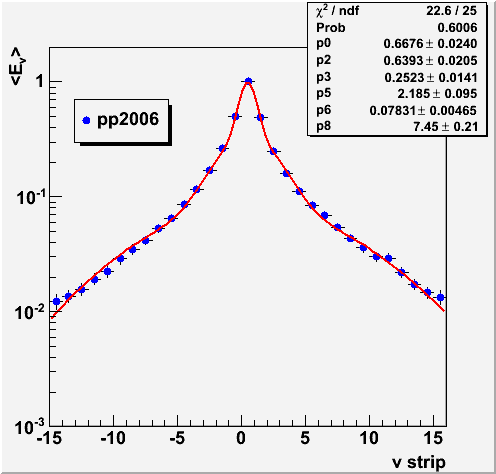

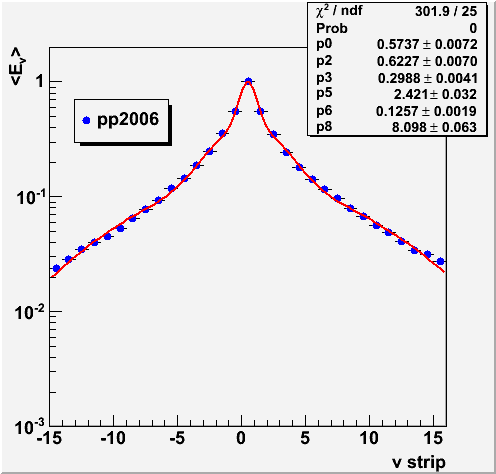

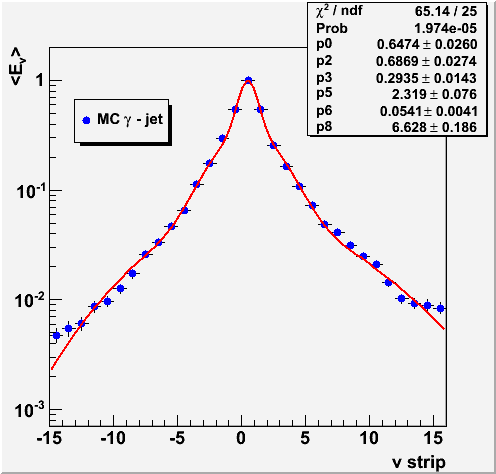

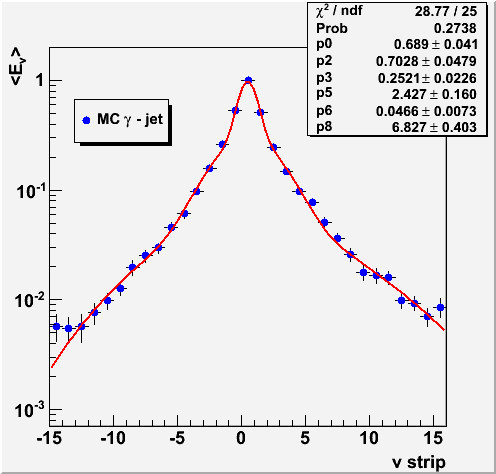

(II) Sum of Sectors 2, 5, 8 & 11 (V Plane)

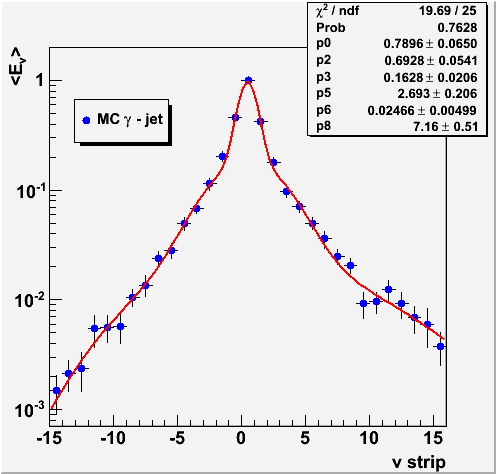

(a) Pre1 =0, Pre2 =0





(b) Pre1 =0, Pre2 >0

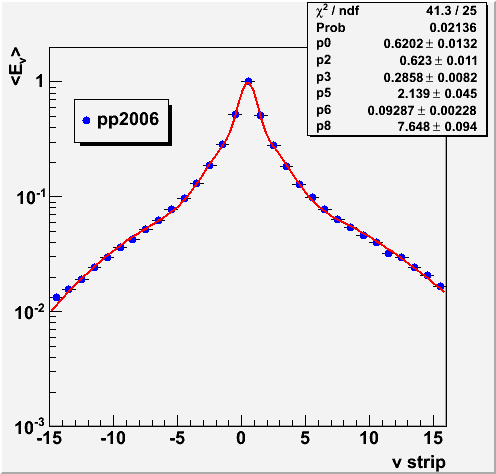

(c) 0<Pre1<=4MeV

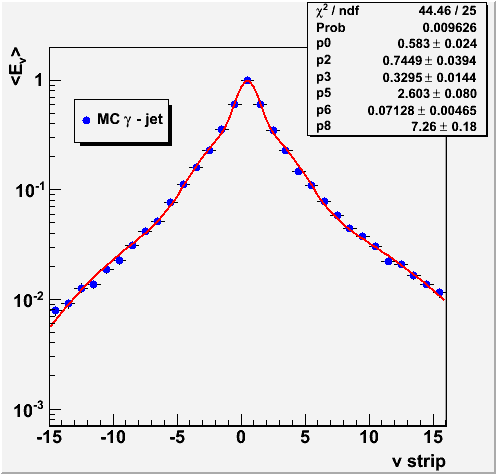

(d) Pre1 >= 4MeV

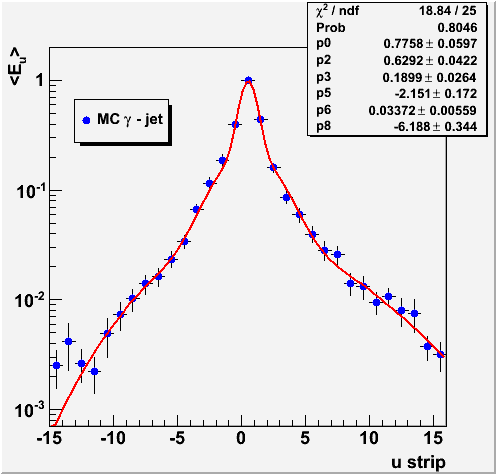

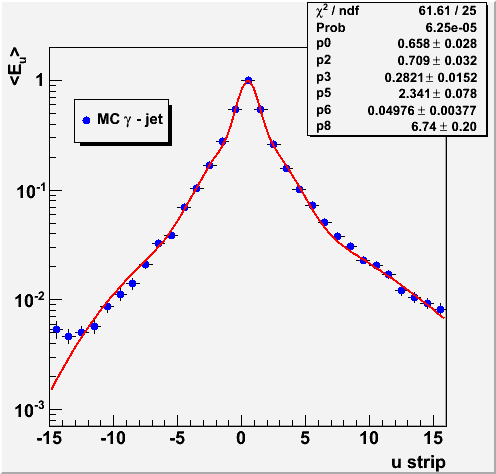

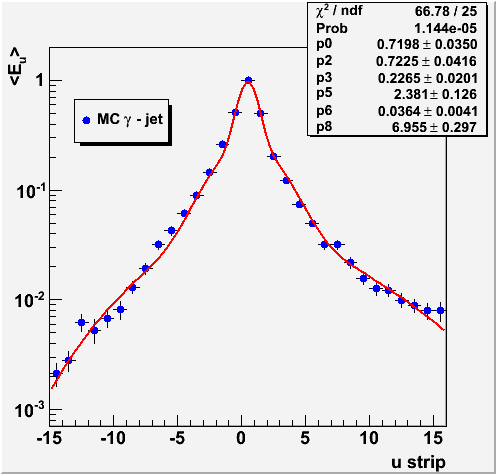

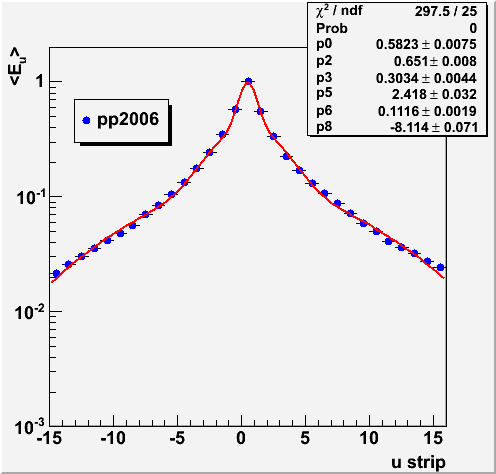

(III) Sum of Sectors 3, 6, 9 & 12 (U Plane)

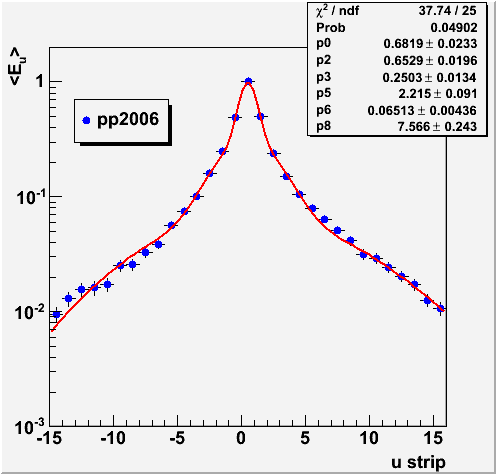

(a) Pre1 =0, Pre2 =0






(b) Pre1 =0, Pre2 >0







(c) 0<Pre1<4MeV

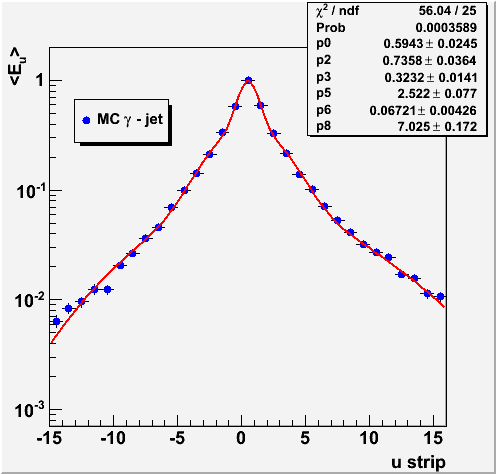

(d) Pre1 >= 4MeV

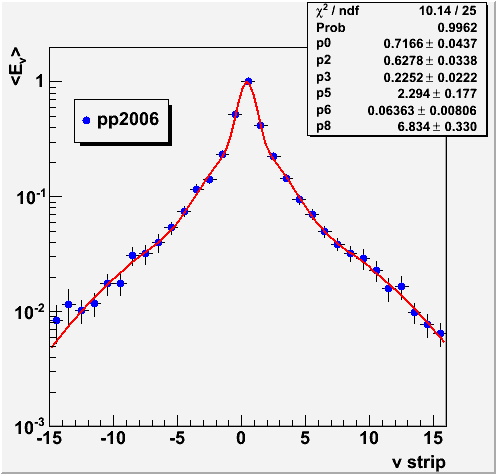

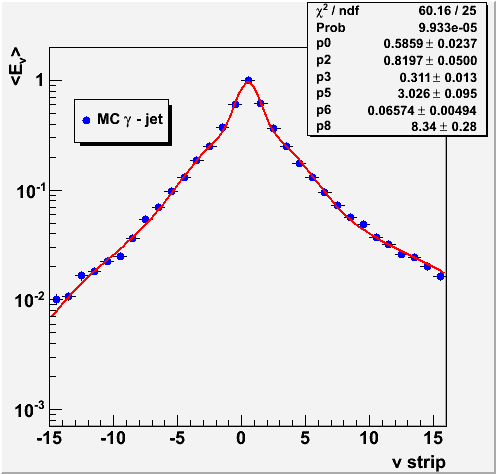

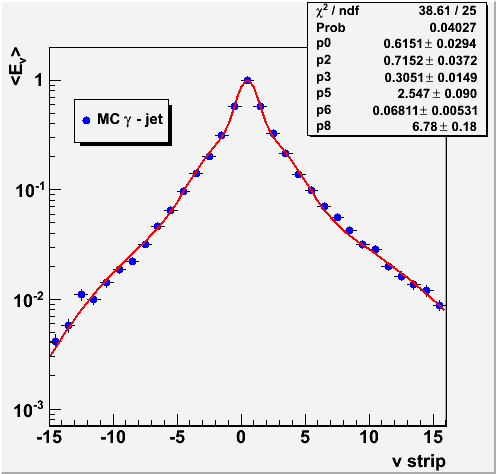

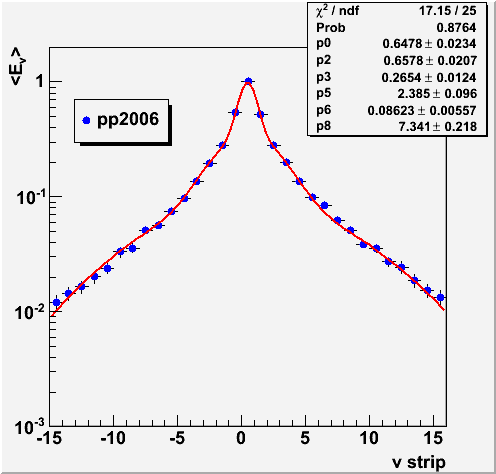

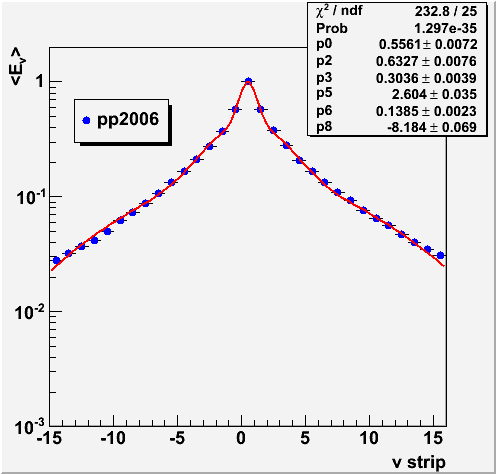

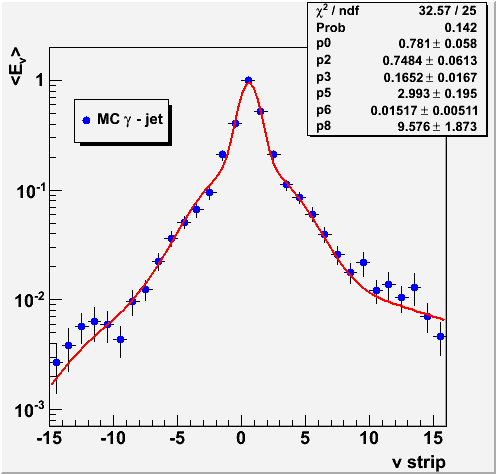

(III) Sum of Sectors 3, 6, 9 & 12 (V Plane)

(a) Pre1 =0, Pre2 =0

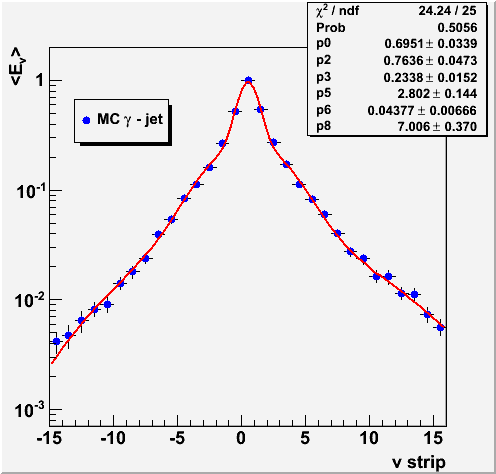

(b) Pre1 =0, Pre2 >0













(c) 0<Pre1 < 4MeV





(d) Pre1 >= 4MeV
