Energy deposition in various EEMC layers : Data vs MC
Event Selection
These distributions are based on the following fiducial cuts :
(1)Dijets from the jet trees with an associated gamma to one of the jets from the gamma
trees (ConeJets5 branch is used in this study)
(2) Photon and jet are back to back i.e [cos(Φγ – Φjet)]<-0.8
(3) Detector eta of the away side jet : ΙηjetΙ < 0.8
(4) pT of photon > 7 GeV
(5) pT of away side jet > 5 GeV

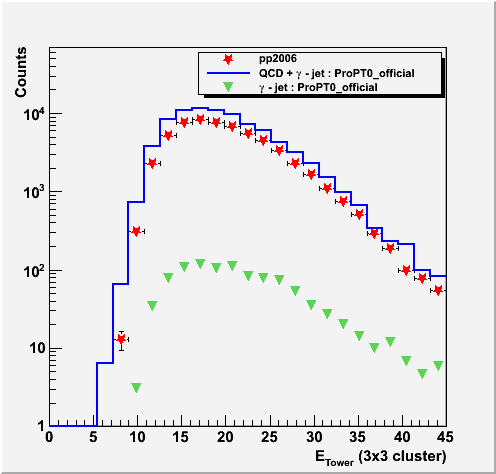

Figure 1 : 3x3 tower cluster energy

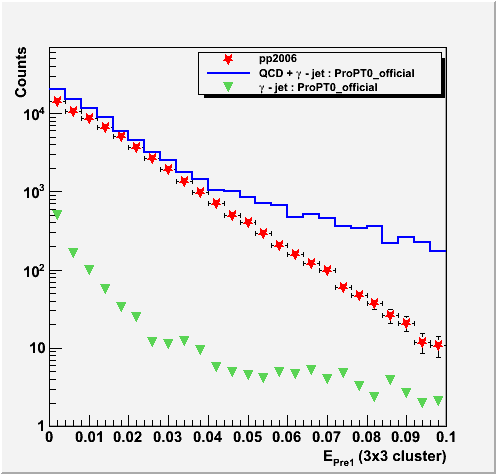

Figure 2 : 3x3 pre shower1 cluster energy

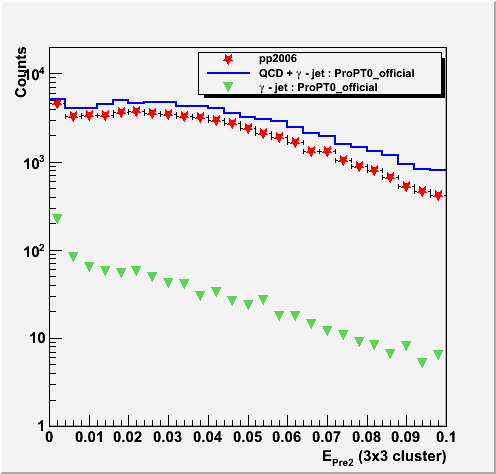

Figure 3 : 3x3 pre shower2 cluster energy

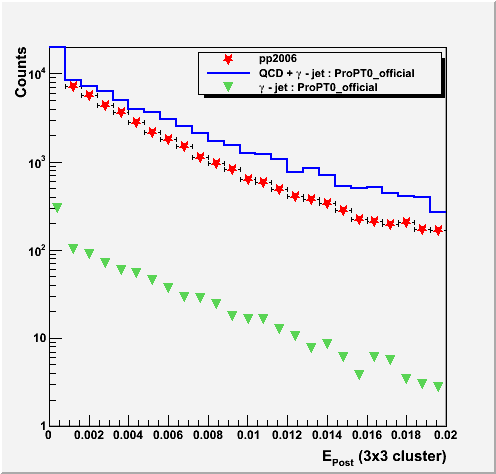

Figure 4 : 3x3 post shower cluster energy

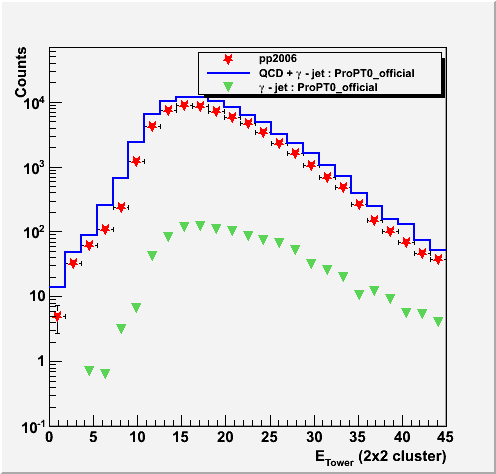

Figure 5 : 2x2 tower cluster energy

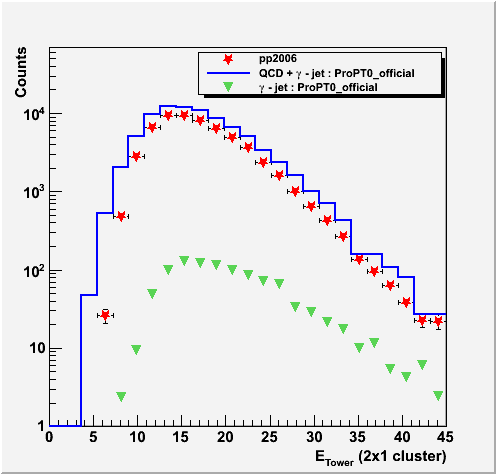

Figure 6 : 2x1 tower cluster energy
