Kinematic distributions - Data vs MC
These distributions are based on the following fiducial cuts :
(1)Dijets from the jet trees with an associated gamma to one of the jets from the gamma
trees (ConeJets5 branch is used in this study)
(2) Photon and jet are back to back i.e [cos(Φγ – Φjet)]<-0.8
(3) Detector eta of the away side jet : ΙηjetΙ < 0.8
(4) pT of photon > 7 GeV
(5) pT of away side jet > 5 GeV

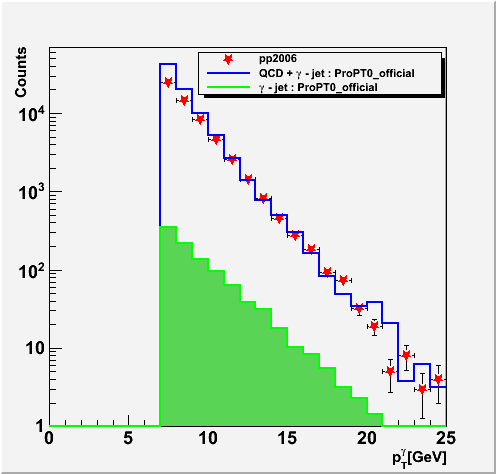

Figure 1 : pT distribution of photons and away side jet

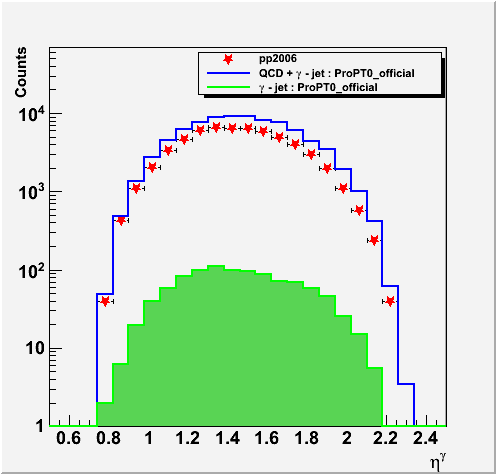

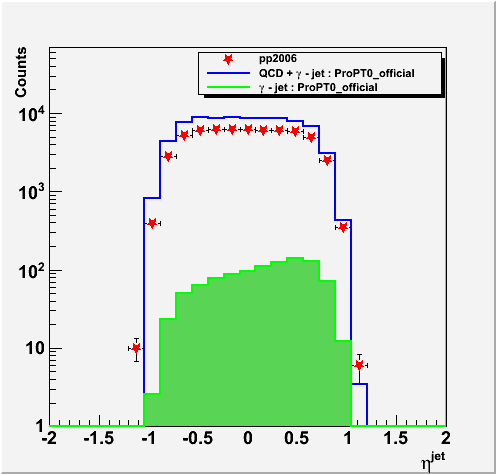

Figure 2 :
η distribution of photons and away side jet

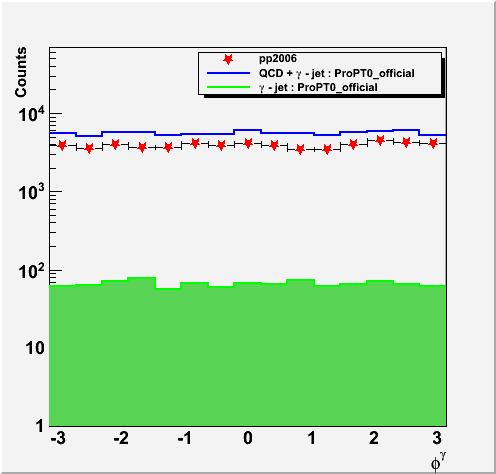

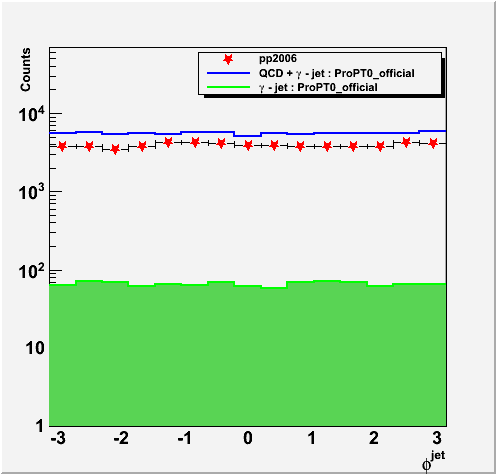

Figure 3 : Φ distribution of photons and away side jet
