Sector dependent shower shapes sorted into different preshower bins - Triple Gaussian Fits (Version 2)

Updated on Mon, 2011-07-25 08:11. Originally created by sdhamija on 2011-07-24 15:13.

 Transverse Shower Profile Distributions



Fitting function "[0]*(exp ( -0.5*((x-[1])/[2])**2 )+[3]*exp ( -0.5*((x-[4])/[5])**2 )+[6]*exp ( -0.5*((x[7])/([8]*(1.0+[9]*(x-[7]))))**2 )"

To see the values of all the parameters for these different fits, please open the attached file shower.txt

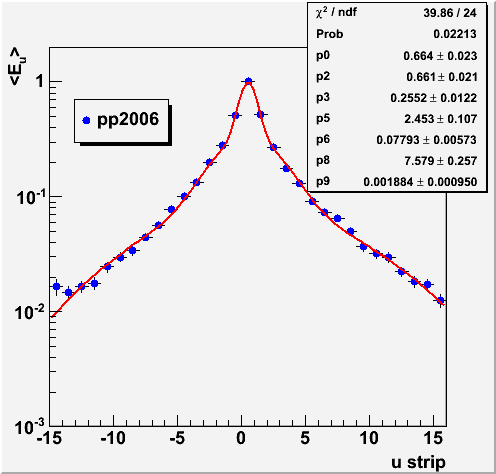

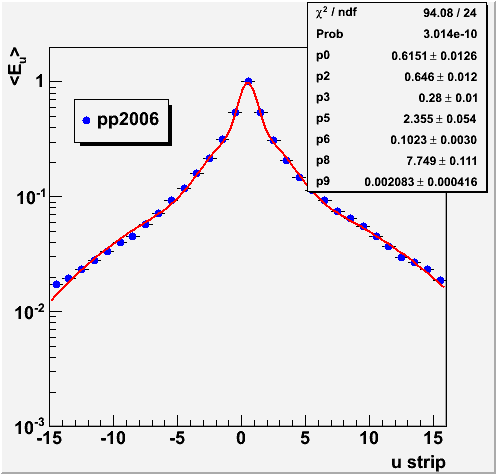

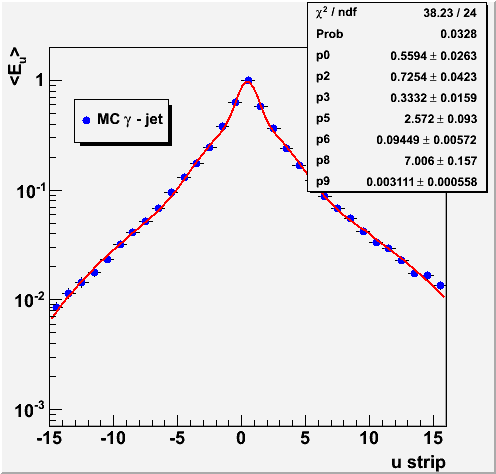

(I) Sum of Sectors 1, 4, 7 & 10 (U Plane)

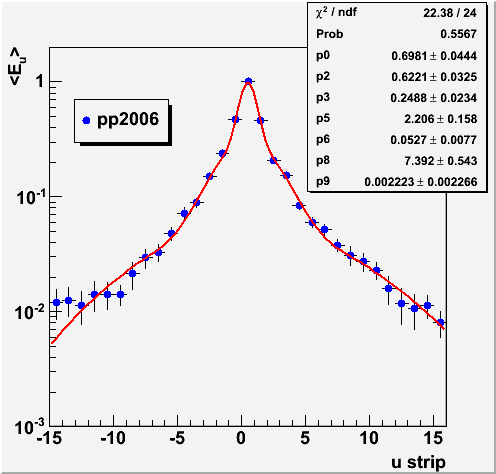

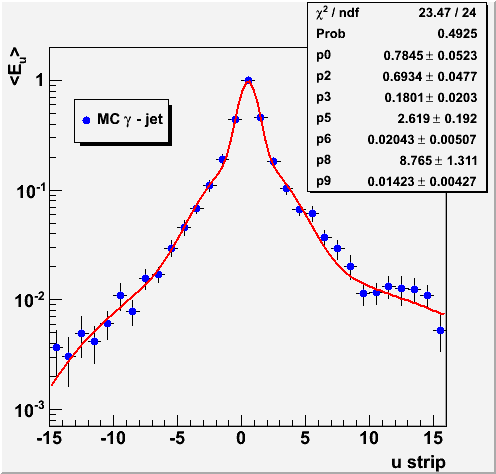

(a) Pre1 =0, Pre2 =0

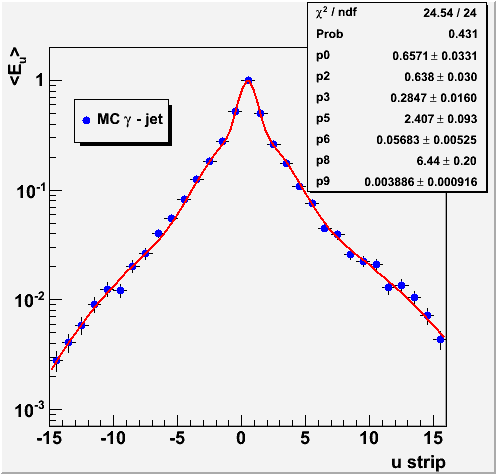

(b) Pre1 =0, Pre2 >0

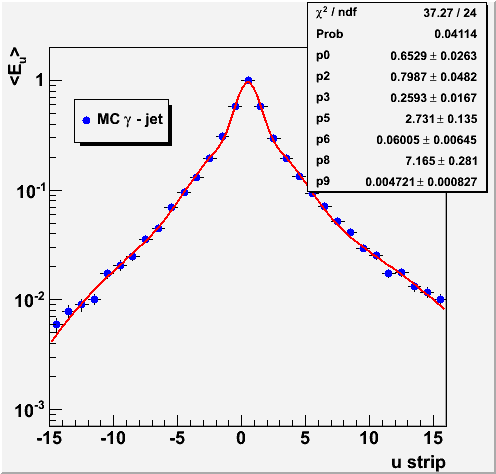

(c) 0<Pre1<4MeV

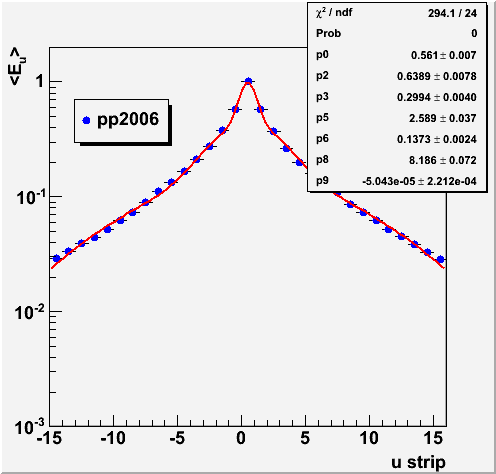

(d) Pre1>=4MeV

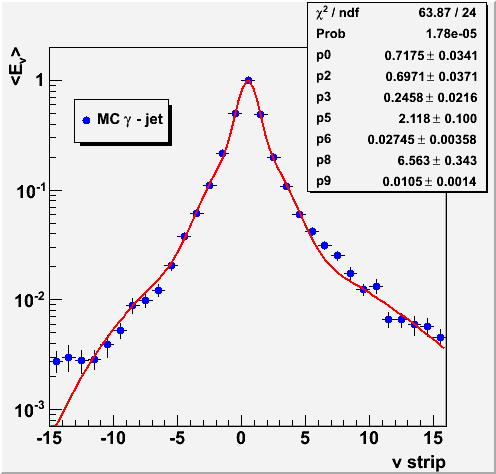

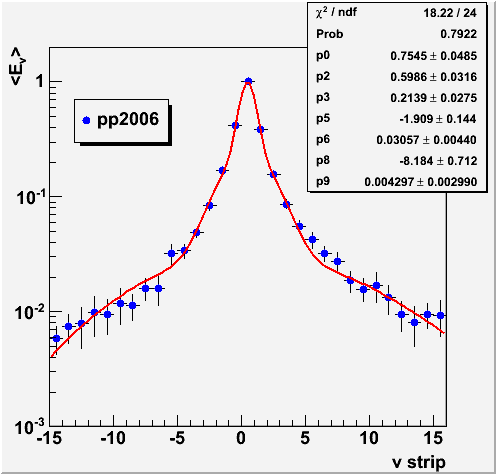

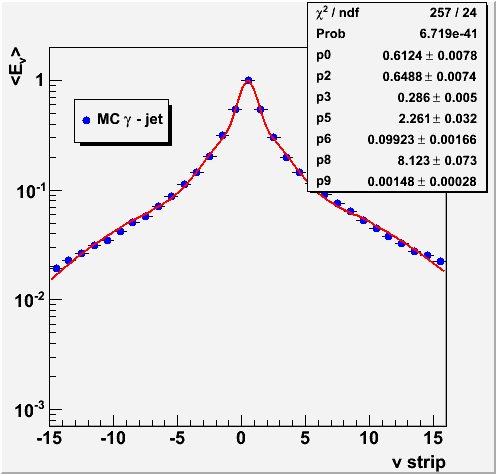

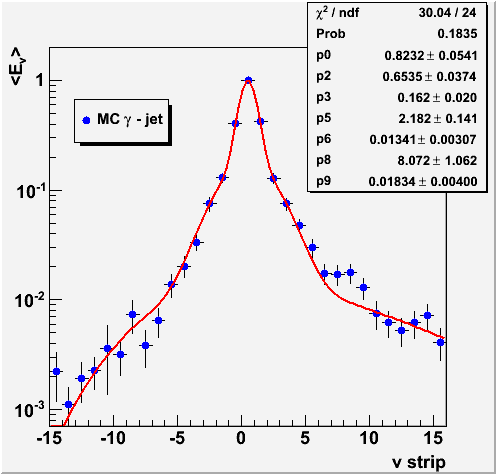

(I) Sum of Sectors 1, 4, 7 & 10 (V Plane)

(a) Pre1 =0, Pre2 =0

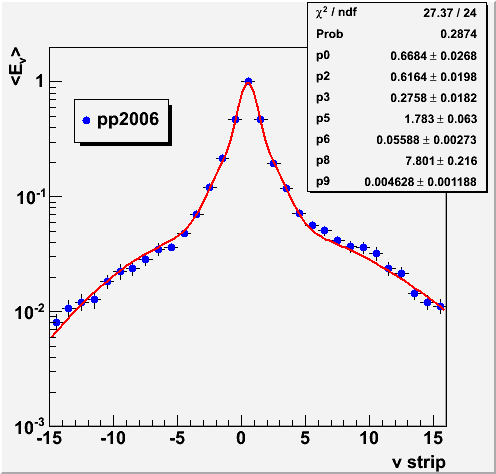

(b) Pre1 =0, Pre2 >0

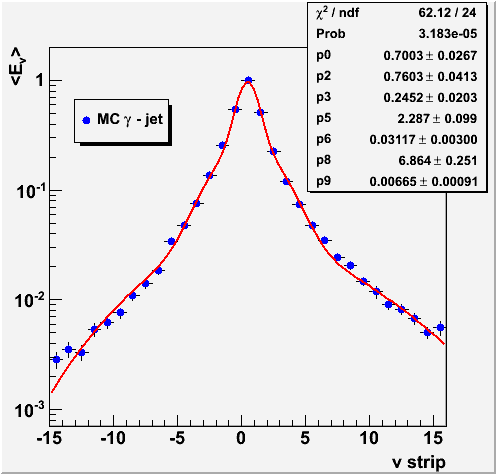

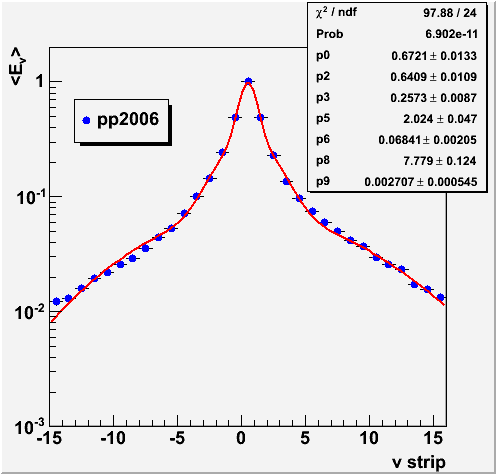

(c) 0<Pre1<4MeV

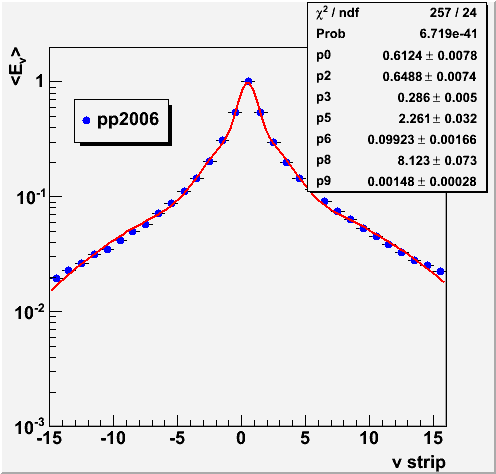

(d) Pre1>=4MeV

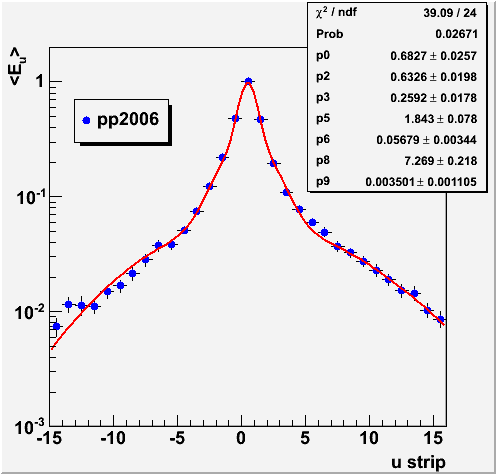

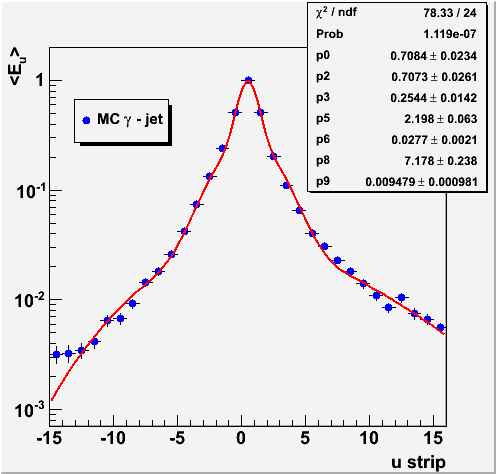

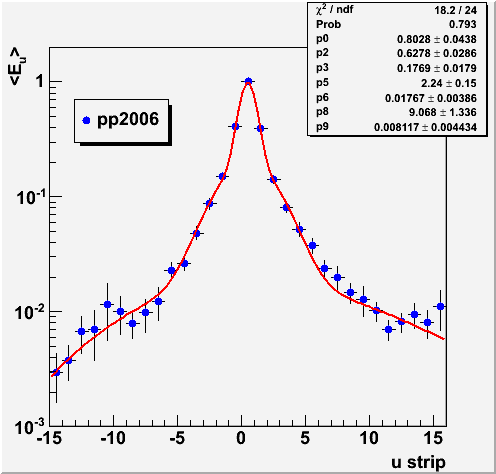

(II) Sum of Sectors 2, 5, 8 & 11 (U Plane)

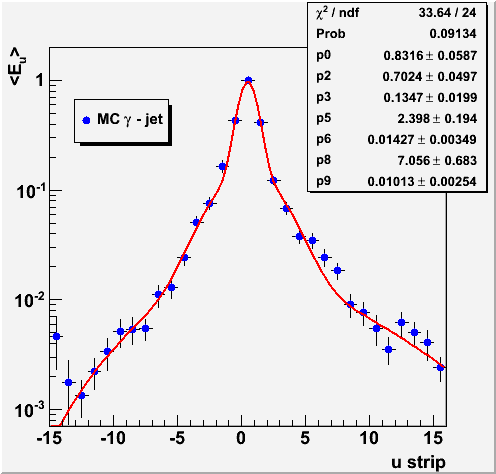

(a) Pre1 =0, Pre2 =0

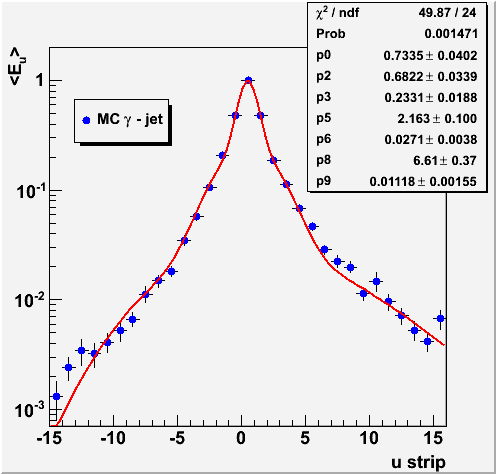

(b) Pre1 =0, Pre2 >0

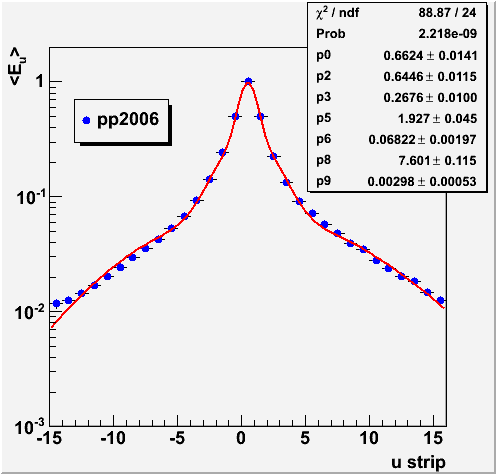

(c) 0<Pre1 < 4MeV

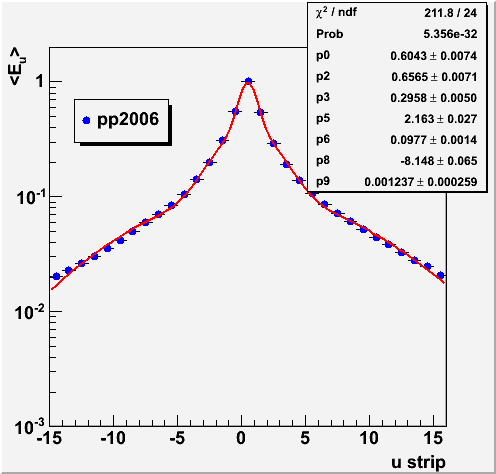

(d) Pre1 >= 4MeV

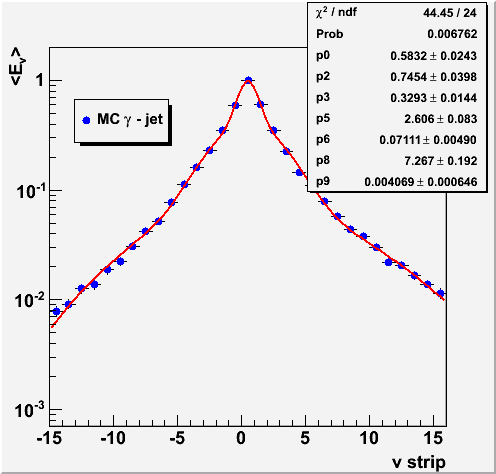

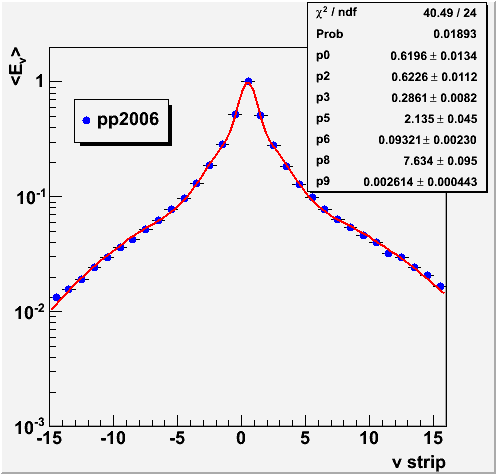

(II) Sum of Sectors 2, 5, 8 & 11 (V Plane)

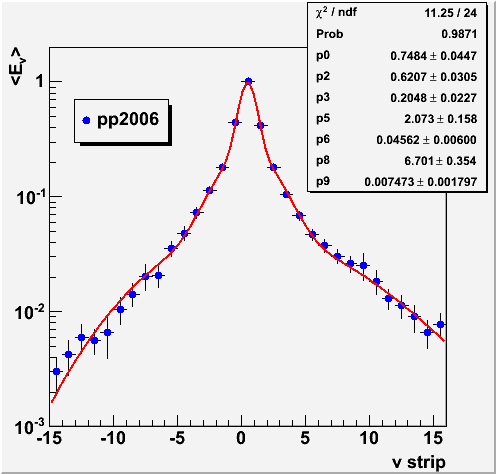

(a) Pre1 =0, Pre2 =0





(b) Pre1 =0, Pre2 >0





(c) 0<Pre1<=4MeV







(d) Pre1 >= 4MeV

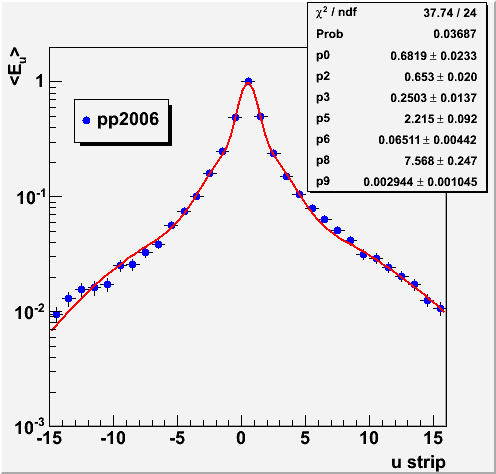

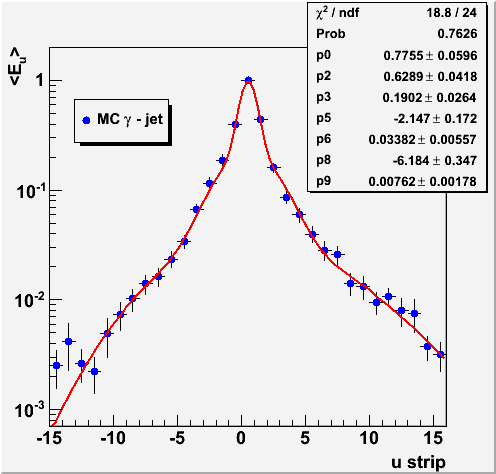

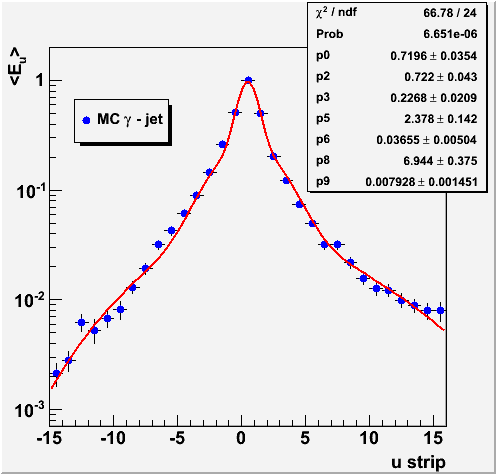

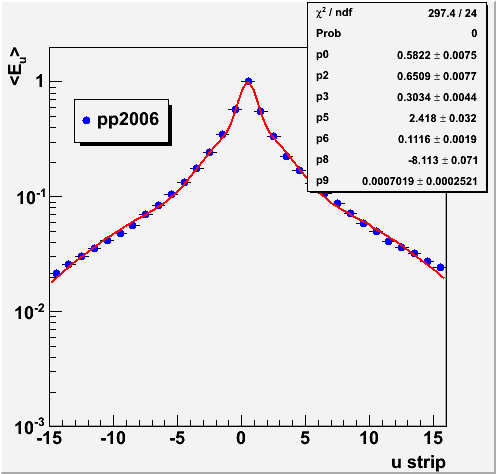

(III) Sum of Sectors 3, 6, 9 & 12 (U Plane)

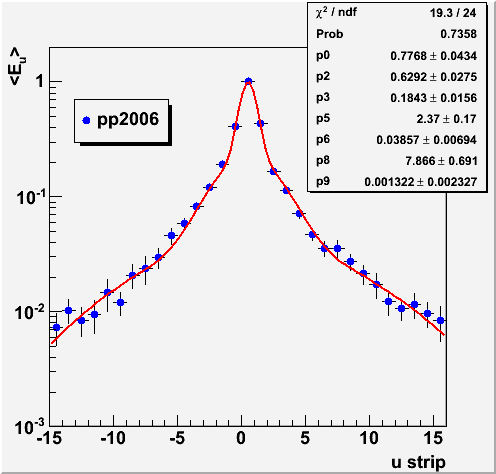

(a) Pre1 =0, Pre2 =0





(b) Pre1 =0, Pre2 >0

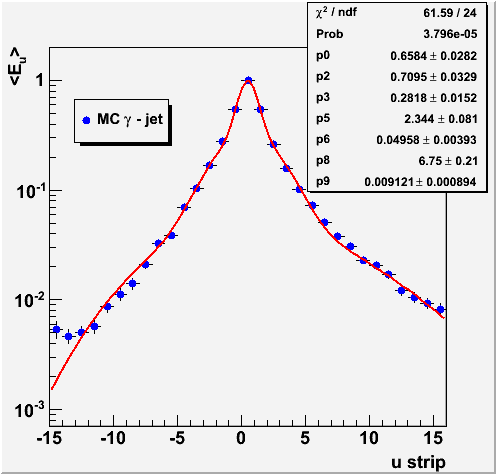

(c) 0<Pre1<4MeV

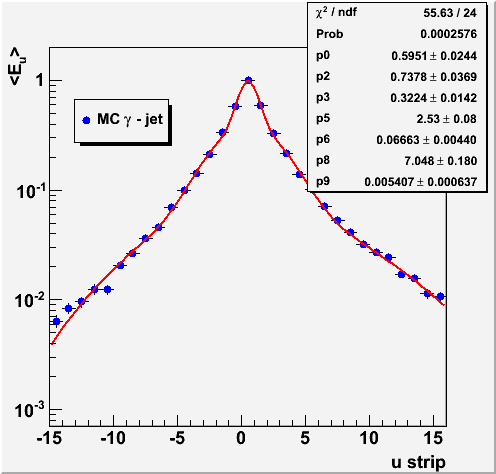

(d) Pre1 >= 4MeV

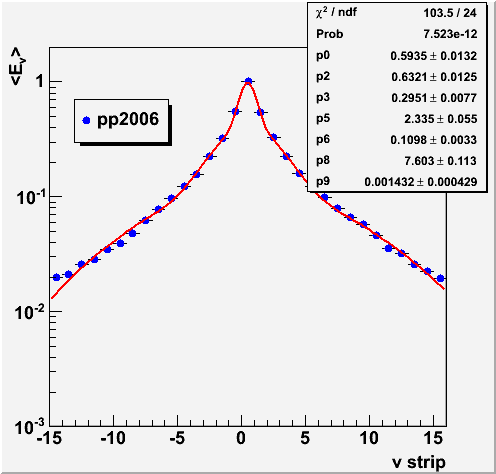

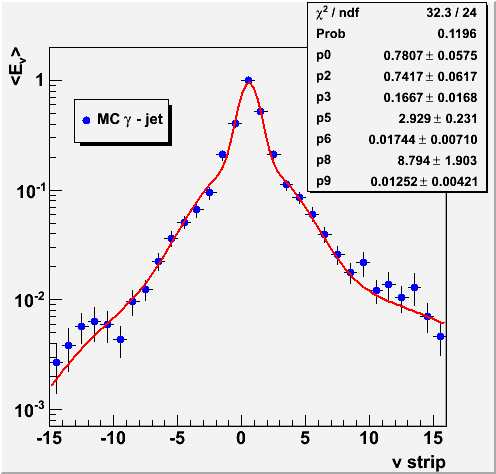

(III) Sum of Sectors 3, 6, 9 & 12 (V Plane)

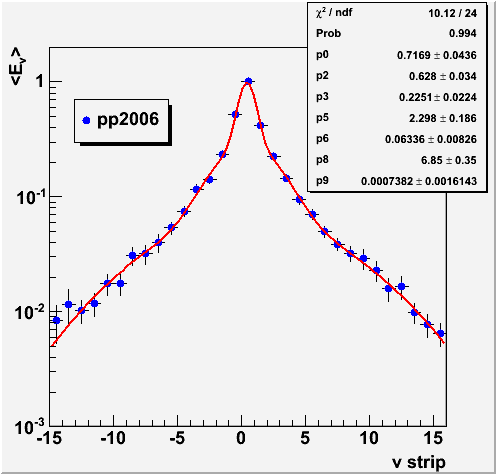

(a) Pre1 =0, Pre2 =0

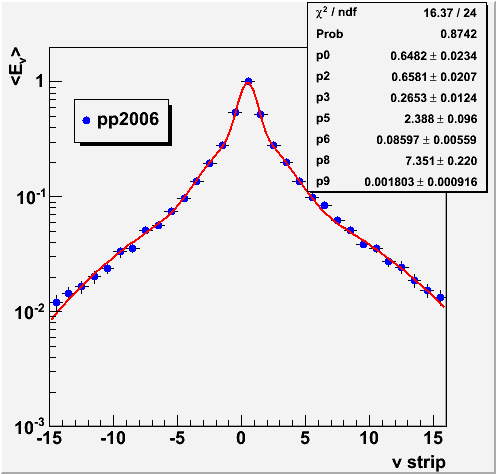

(b) Pre1 =0, Pre2 >0





(c) 0<Pre1 < 4MeV

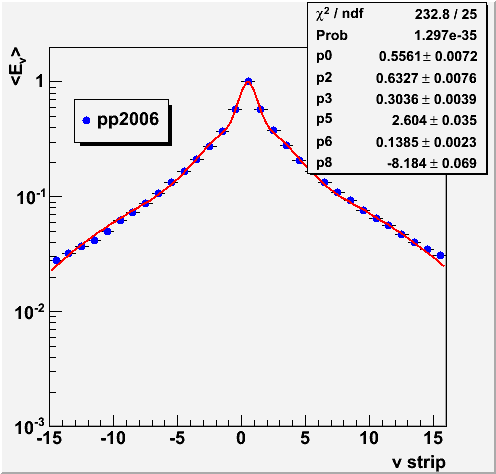

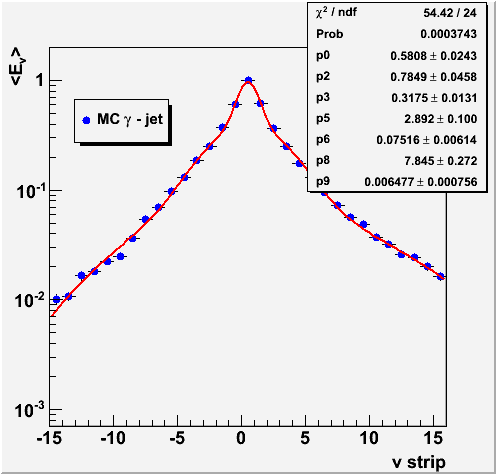

(d) Pre1 >= 4MeV





















(IV) Fitting parameters

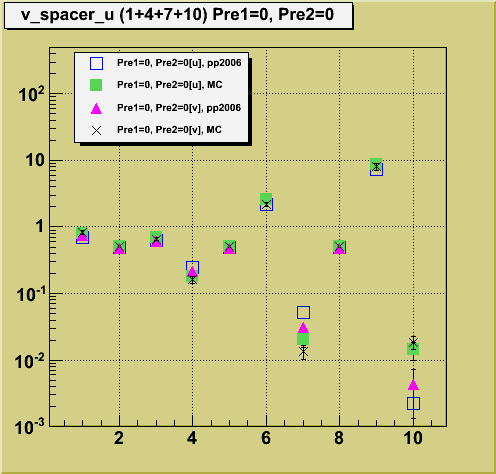

 (a) Sum of sectors 1, 4, 7 & 10 (Pre1=0, Pre2=0)

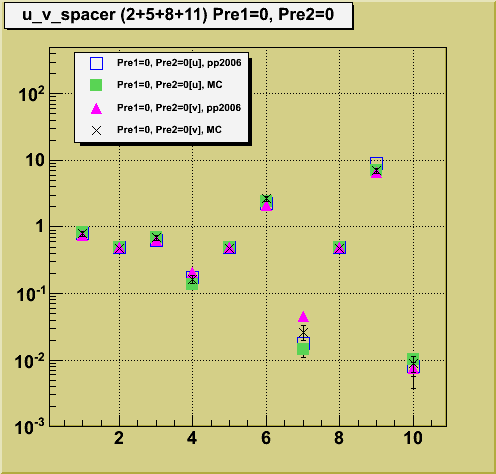

(b) Sum of sectors 2, 5, 8 & 11 (Pre1=0, Pre2=0)







(c) Sum of sectors 3, 6, 9 & 12 (Pre1=0, Pre2=0)

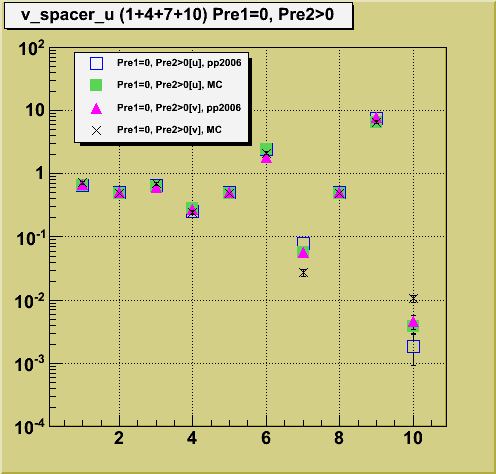

(d) Sum of sectors 1, 4, 7 & 10 (Pre1=0, Pre2>0)

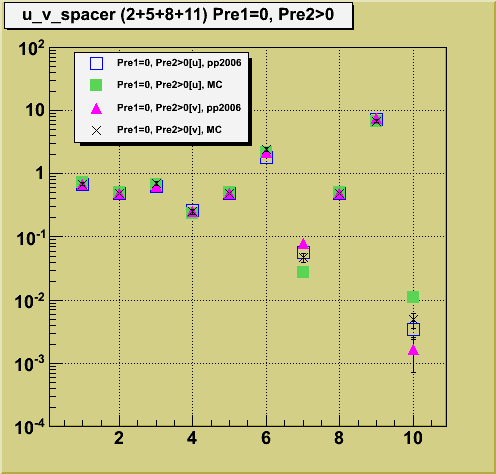

(e) Sum of sectors 2, 5, 8 & 11 (Pre1=0, Pre2>0)

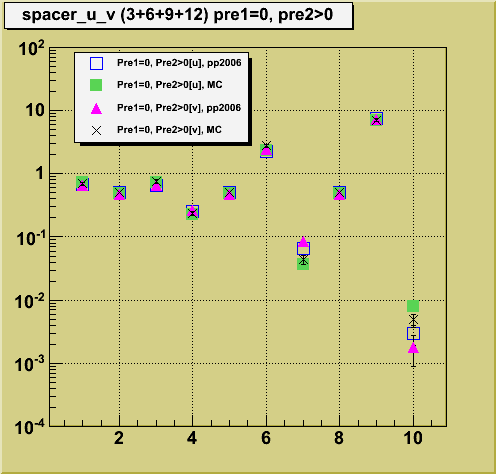

(f) Sum of sectors 3, 6, 9 & 12 (Pre1=0, Pre2>0)
