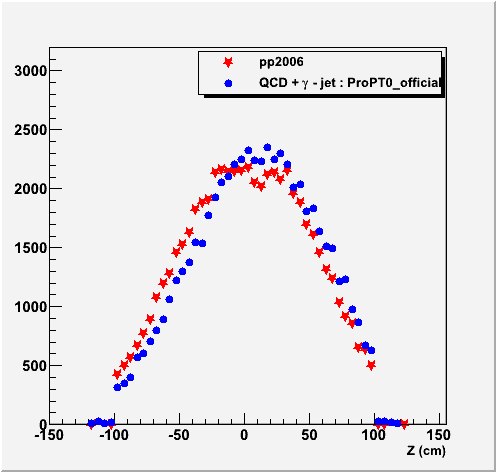

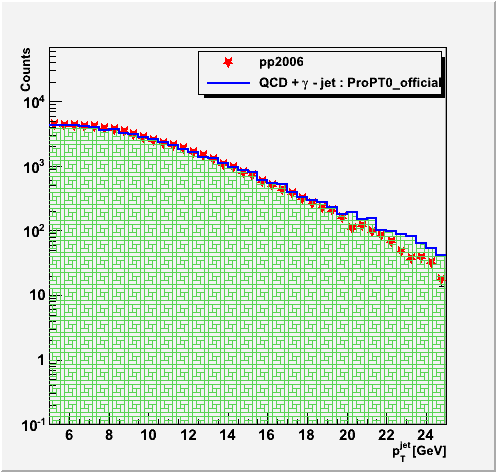

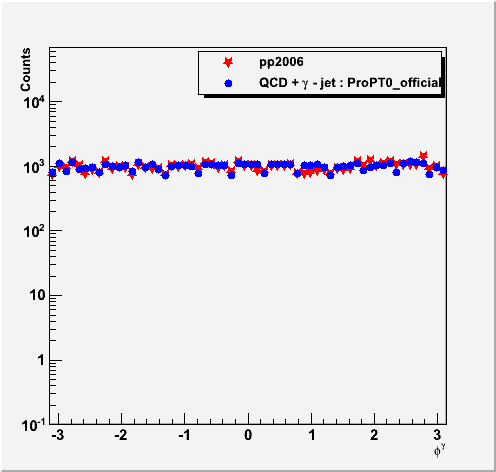

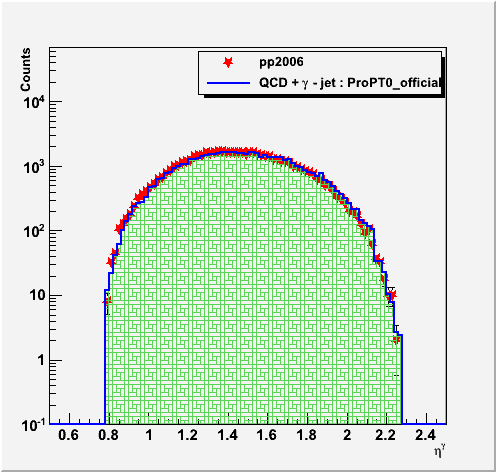

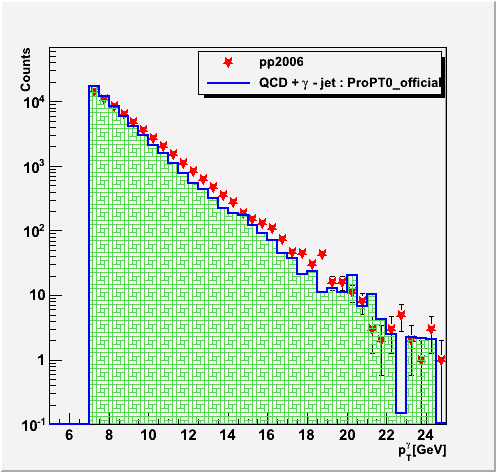

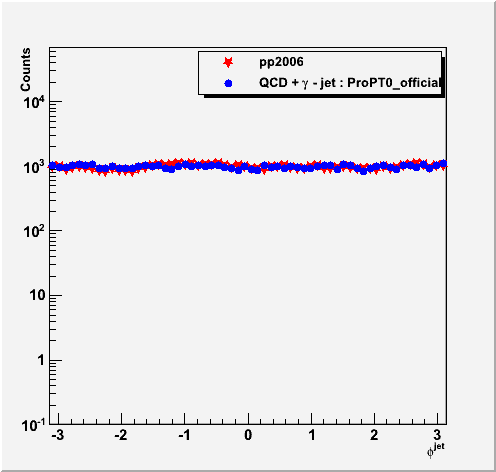

First look at few more distributions using tree approach - data vs MC

Updated on Sun, 2011-06-26 19:22. Originally created by sdhamija on 2011-06-26 19:22.

 These distributions are based on the following fiducial cuts :

(1)Dijets from the jet trees with an associated gamma to one of the jets from the gamma

Trees (ConeJets5 branch is used in this study)

(2) Photon and jet are back to back i.e  [cos(Φγ – Φjet)]<-0.8

(3) Detector eta of the away side jet : ΙηjetΙ < 0.8

(4) pT of photon > 7 GeV

(5) pT of away side jet > 5 GeV
