(updated 10/22/2013) possible suitable sockets for Amperex xp2202 PMT, from ET Enterprises, Ltd.

Updated on Tue, 2013-10-22 13:14. Originally created by situ on 2013-10-14 13:59.

*******(update 10/22/2013)***********

some more informtaion for the prices for the four types of socket that we might be interested in:

// for 51 mm and larger end window photomultiplier tube
// Assume that we bought with large quantities.
// Maximum of 50 can be bought online directly , while buying more than 50 will required further contacts

B19A:    -- Pmt socket, 19 contacts on 31.75 mm pcd
Price: GBP 25.00 (EUR 31.00, USD 41.00)

B19A/LF:  --  B19A less flange
Price: GBP 25.00 (EUR 31.00, USD 41.00)

B19A/PCLF:   --  B19A, pcb version , less flange
Price: GBP 25.00 (EUR 31.00, USD 41.00)

B19AG:  --  gold plated contacts
Price: GBP 31.00 (EUR 38.00, USD 50.00)

******(update 10/15/2013)*****
Story so far:

  • $60 per pieces,
  • $45 per pieces if bought 50.
  • $42 per pieces if bought 100.

******************************************************************************

*Trivia: This Electronics Tubes enterprises Ltd is used to be the EMI Group Limited, which produced the EMI electronics 9954 kb/1 26558  PMT (or the CDF base with blue plastic socket).

*****************************************************************************
References:
http://www.et-enterprises.com/pmt-accessories/sockets
http://www.et-enterprises.com/pmt-accessories/sockets/socket-drawings
http://www.et-enterprises.com/files/image/pmt-accessories/sockets/b19a.jpg
http://www.et-enterprises.com/files/file/socket-drawings/25990-C2-issue1_B19A-B19APC-Socket.pdf
http://www.et-enterprises.com/files/file/socket-drawings/25990-C1-issue1_B19ALF-B19AGLF-B19APCLF-Socket.pdf
********************************************************************************************************************************

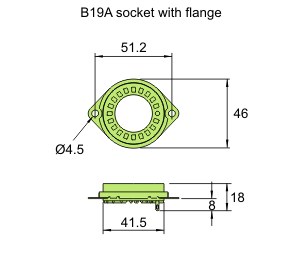

Below is the blueprint of the socket:


****************************************************************************
<<< the communication with the ET Enterprises,Ltd., regarding the Fe2019 Socket>>>

Hello Yaokun,

Thanks for your inquiry.
The unit price of the B19A socket is $60 each FOB Sweetwater, TX
50 pc is $45 each
100pc is $42 each

Please let me know if you need more information.

regards,

Paul

Paul W. Davison
Sales Manager
ADIT Electron Tubes
300 Crane Street
Sweetwater, TX 79556
Tel: 325-235 1418
Toll free: 800-399 4557
Fax: 325-235 2872
Cell: 862-209 0653

From: YAOKUN SITU [mailto:yis5155@psu.edu]
Sent: 14 October 2013 20:21
To: Mirjam Gilgen
Subject: Question concerning the PMT sockets



To those who concerns,
      Hi, I read from the website and I am interested in the socket for the 51mm & larger end window PMT, more specifically, the B19A type family. I was wondering how much are these sockets in general, for if I want to buy one sample or if I want to buy for a large quantity?
      Thanks.

--
