IST Sti Geometry Test II

The results from June 4 show there could be hidden overlapping volumes for the IST in-active volumes. I did several checks step-by-step and try to find out the possible overlapping volumes, and the checks are shown as below:

Test with real data

    1) Default chain option   "P2014a,btof,BEmcChkStat,Corr4,OSpaceZ2,OGridLeak3D,SCScalerCal,goptSCE100051,-hitfilt"
    2) Chain without IST geometry    "P2014a,btof,BEmcChkStat,Corr4,OSpaceZ2,OGridLeak3D,SCScalerCal,goptSCE100051,-hitfilt,-StiIst,-IstIT"

    Input Data is first 1000 events in /star/data03/daq/2014/047/15047100/st_physics_15047100_raw_2500001.daq.

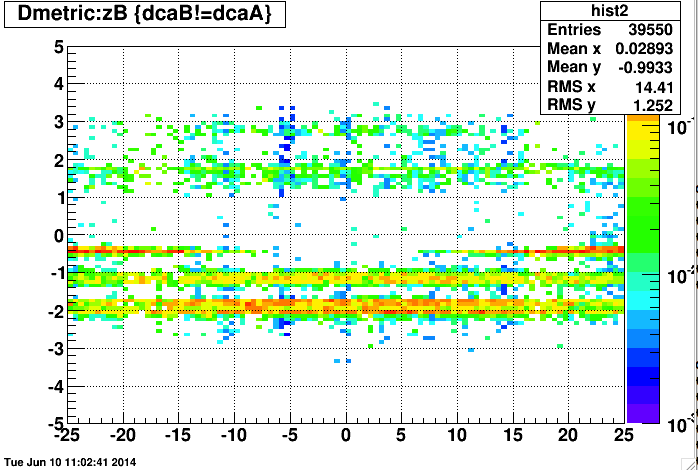

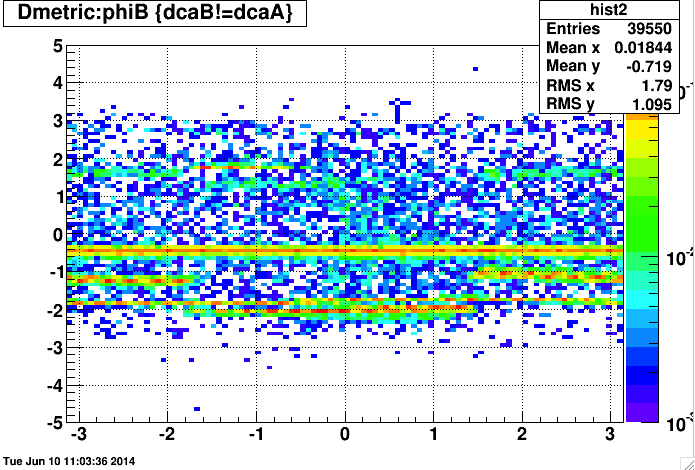

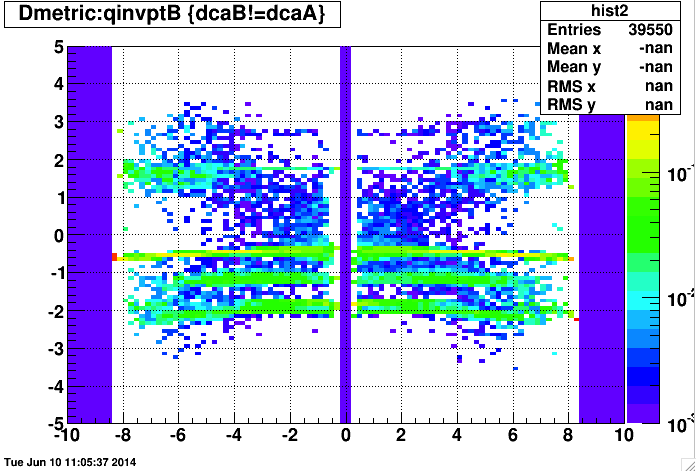

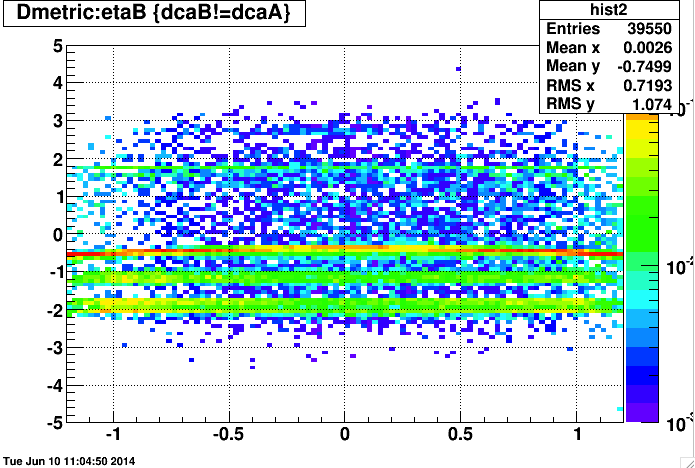

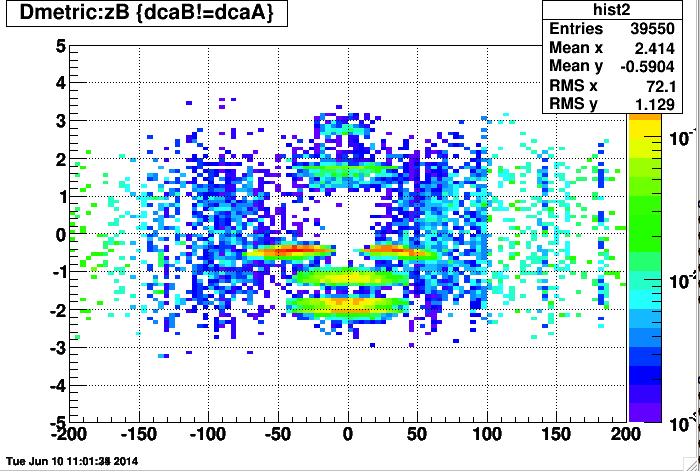

1. Using the online version: Describe the in-active materials with a simplified thin tube volume.


2. Re-defined in-active material volumes for IST Sti geometry
(1) Dmetric without any in-active materials

(2) Dmetric with only kapton hybrid in-active materials included

(3) Dmetric with only kapton hybrid (no arc sub-volume) in-active materials included

(4) Dmetric with only redefined carbon foam stave in-active materials included

(5) Dmetric with only carbon honeycomb in-active materials included

(6) Dmetric with only carbon skins in-active materials included

(7) Dmetric with only end-caps in-active materials included

(8) Dmetric with only center cooling tube/coolant in-active materials included

(9) Dmetric with only east readout electronics in-active materials included

(10) Dmetric with only east short coolings/cablings in-active materials included

(11) Dmetric with only west cooling-loop in-active materials included

(12) Dmetric with only support blocks in-active materials included

(13) Dmetric with only cabling/cooling lines in PIT-PST transition area in-active materials included

(14) Dmetric with only cabling/cooling lines on PIT area in-active materials included
400

(15) Dmetric with all in-active materials included

(16) Dmetric with all in-active materials (except for IBHC volume) included

Issue: The kapton hybrid seems plays the dominant role to contribute the positive sign Dmetric. Here I can confirm that there is not volume-overlapping during placement and definition. The placement information for top hybrid layer (IHTH+ IHTC) is shown below:

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 1: 1.21701, 14.3053, 4.1017, 1.49625, 14.8817, 0.279235, 14.8817, 1.49625, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 2: 0.955213, 14.3053, 4.10171, 1.23445, 14.8817, 0.279235, 14.8817, 1.23445, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 3: 0.693414, 14.3053, 4.1017, 0.972649, 14.8817, 0.279235, 14.8817, 0.972649, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 4: 0.431615, 14.3053, 4.1017, 0.71085, 14.8817, 0.279235, 14.8817, 0.71085, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 5: 0.169815, 14.3053, 4.10171, 0.449051, 14.8817, 0.279235, 14.8817, 0.449051, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 6: -0.0919841, 14.3053, 4.1017, 0.187251, 14.8817, 0.279235, 14.8817, 0.187251, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 7: -0.353783, 14.3053, 4.10171, -0.0745482, 14.8817, 0.279235, 14.8817, -0.0745482, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 8: -0.615583, 14.3053, 4.10171, -0.336348, 14.8817, 0.279235, 14.8817, -0.336348, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 9: -0.877382, 14.3053, 4.10171, -0.598147, 14.8817, 0.279235, 14.8817, -0.598147, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 10: -1.13918, 14.3053, 4.10171, -0.859946, 14.8817, 0.279235, 14.8817, -0.859946, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 11: -1.40098, 14.3053, 4.10171, -1.12175, 14.8817, 0.279235, 14.8817, -1.12175, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 12: -1.66278, 14.3053, 4.1017, -1.38355, 14.8817, 0.279235, 14.8817, -1.38355, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 13: -1.92458, 14.3053, 4.10171, -1.64534, 14.8817, 0.279235, 14.8817, -1.64534, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 14: -2.18638, 14.3053, 4.10171, -1.90714, 14.8817, 0.279235, 14.8817, -1.90714, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 15: -2.44818, 14.3053, 4.10171, -2.16894, 14.8817, 0.279235, 14.8817, -2.16894, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 16: -2.70998, 14.3053, 4.10171, -2.43074, 14.8817, 0.279235, 14.8817, -2.43074, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 17: -2.97178, 14.3053, 4.10171, -2.69254, 14.8817, 0.279235, 14.8817, -2.69254, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 18: 3.04961, 14.3053, 4.10171, -2.95434, 14.8817, 0.279235, 14.8817, -2.95434, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 19: 2.78781, 14.3053, 4.10171, 3.06704, 14.8817, 0.279235, 14.8817, 3.06704, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 20: 2.52601, 14.3053, 4.10171, 2.80524, 14.8817, 0.279235, 14.8817, 2.80524, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 21: 2.26421, 14.3053, 4.10171, 2.54345, 14.8817, 0.279235, 14.8817, 2.54345, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 22: 2.00241, 14.3053, 4.10171, 2.28165, 14.8817, 0.279235, 14.8817, 2.28165, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 23: 1.74061, 14.3053, 4.10171, 2.01985, 14.8817, 0.279235, 14.8817, 2.01985, -0.185001

Debug IHTH placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 24: 1.47881, 14.3053, 4.10171, 1.75805, 14.8817, 0.279235, 14.8817, 1.75805, -0.185001

Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 1: 1.21701, 14.3019, 4.1017, 1.49631, 14.8784, 0.279299, 14.8784, 1.49631, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 2: 0.955213, 14.3019, 4.10171, 1.23451, 14.8784, 0.279299, 14.8784, 1.23451, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 3: 0.693414, 14.3019, 4.1017, 0.972713, 14.8784, 0.279299, 14.8784, 0.972713, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 4: 0.431615, 14.3019, 4.1017, 0.710913, 14.8784, 0.279299, 14.8784, 0.710913, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 5: 0.169815, 14.3019, 4.10171, 0.449114, 14.8784, 0.279299, 14.8784, 0.449114, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 6: -0.0919841, 14.3019, 4.1017, 0.187315, 14.8784, 0.279299, 14.8784, 0.187315, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 7: -0.353783, 14.3019, 4.10171, -0.0744847, 14.8784, 0.279299, 14.8784, -0.0744847, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 8: -0.615583, 14.3019, 4.10171, -0.336284, 14.8784, 0.279299, 14.8784, -0.336284, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 9: -0.877382, 14.3019, 4.10171, -0.598083, 14.8784, 0.279299, 14.8784, -0.598083, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 10: -1.13918, 14.3019, 4.10171, -0.859883, 14.8784, 0.279299, 14.8784, -0.859883, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 11: -1.40098, 14.3019, 4.10171, -1.12168, 14.8784, 0.279299, 14.8784, -1.12168, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 12: -1.66278, 14.3019, 4.1017, -1.38348, 14.8784, 0.279299, 14.8784, -1.38348, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 13: -1.92458, 14.3019, 4.10171, -1.64528, 14.8784, 0.279299, 14.8784, -1.64528, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 14: -2.18638, 14.3019, 4.10171, -1.90708, 14.8784, 0.279299, 14.8784, -1.90708, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 15: -2.44818, 14.3019, 4.10171, -2.16888, 14.8784, 0.279299, 14.8784, -2.16888, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 16: -2.70998, 14.3019, 4.10171, -2.43068, 14.8784, 0.279299, 14.8784, -2.43068, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 17: -2.97178, 14.3019, 4.10171, -2.69248, 14.8784, 0.279299, 14.8784, -2.69248, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 18: 3.04961, 14.3019, 4.10171, -2.95428, 14.8784, 0.279299, 14.8784, -2.95428, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 19: 2.78781, 14.3019, 4.10171, 3.06711, 14.8784, 0.279299, 14.8784, 3.06711, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 20: 2.52601, 14.3019, 4.10171, 2.80531, 14.8784, 0.279299, 14.8784, 2.80531, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 21: 2.26421, 14.3019, 4.10171, 2.54351, 14.8784, 0.279299, 14.8784, 2.54351, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 22: 2.00241, 14.3019, 4.10171, 2.28171, 14.8784, 0.279299, 14.8784, 2.28171, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 23: 1.74061, 14.3019, 4.10171, 2.01991, 14.8784, 0.279299, 14.8784, 2.01991, -28.625
Debug IHTC placement (NormalRefAngle/NormalRadius/NormalYoffset/CenterRefAngle/CenterRadius/CenterOrientation/LayerRadius/LayerAngle/Zcenter) for ladder 24: 1.47881, 14.3019, 4.10171, 1.75811, 14.8784, 0.279299, 14.8784, 1.75811, -28.625
